Door Mirror (Diagnostics)
>>
General Description
>>

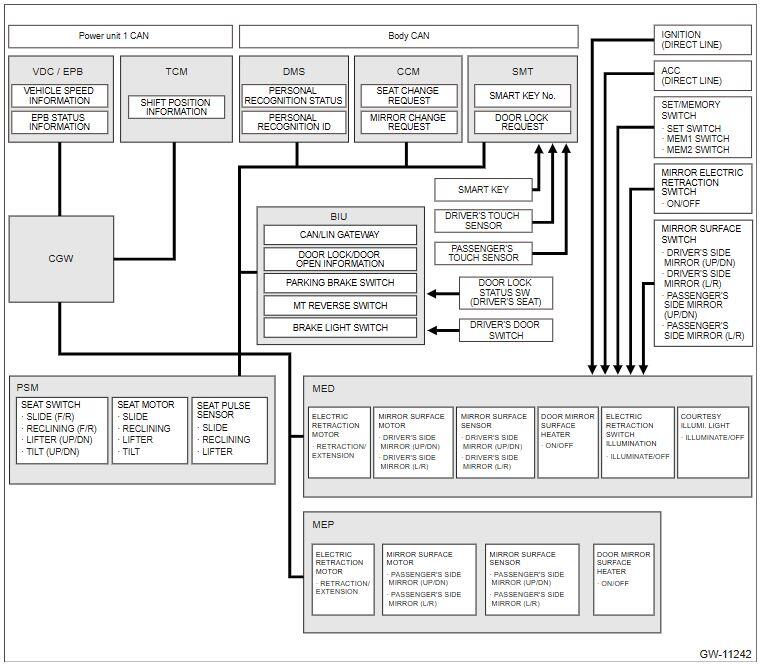

System Block Diagram
System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
