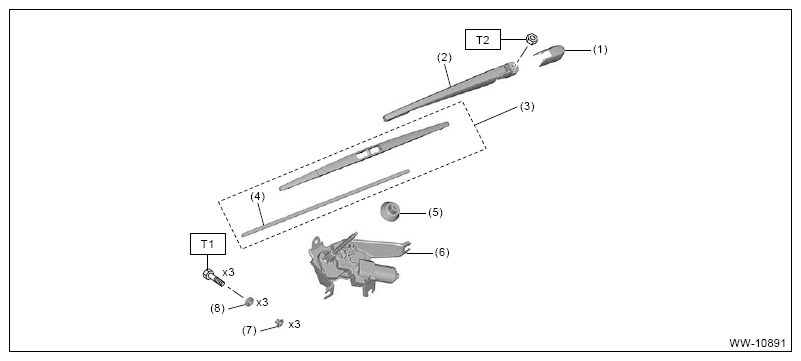

Rear Wiper
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Cover rear wiper |
| (2) |
Arm ASSY rear wiper |
| (4) |
Rubber rear wiper |
| (3) |
Blade ASSY rear wiper |
| (5) |
Cap pivot wiper |
| (6) |
Motor ASSY rear wiper |
| (7) |
Collar |
| (8) |
Rubber |
Tightening torque: N.M (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 8 (0.8, 5.9)
