General Description
>>

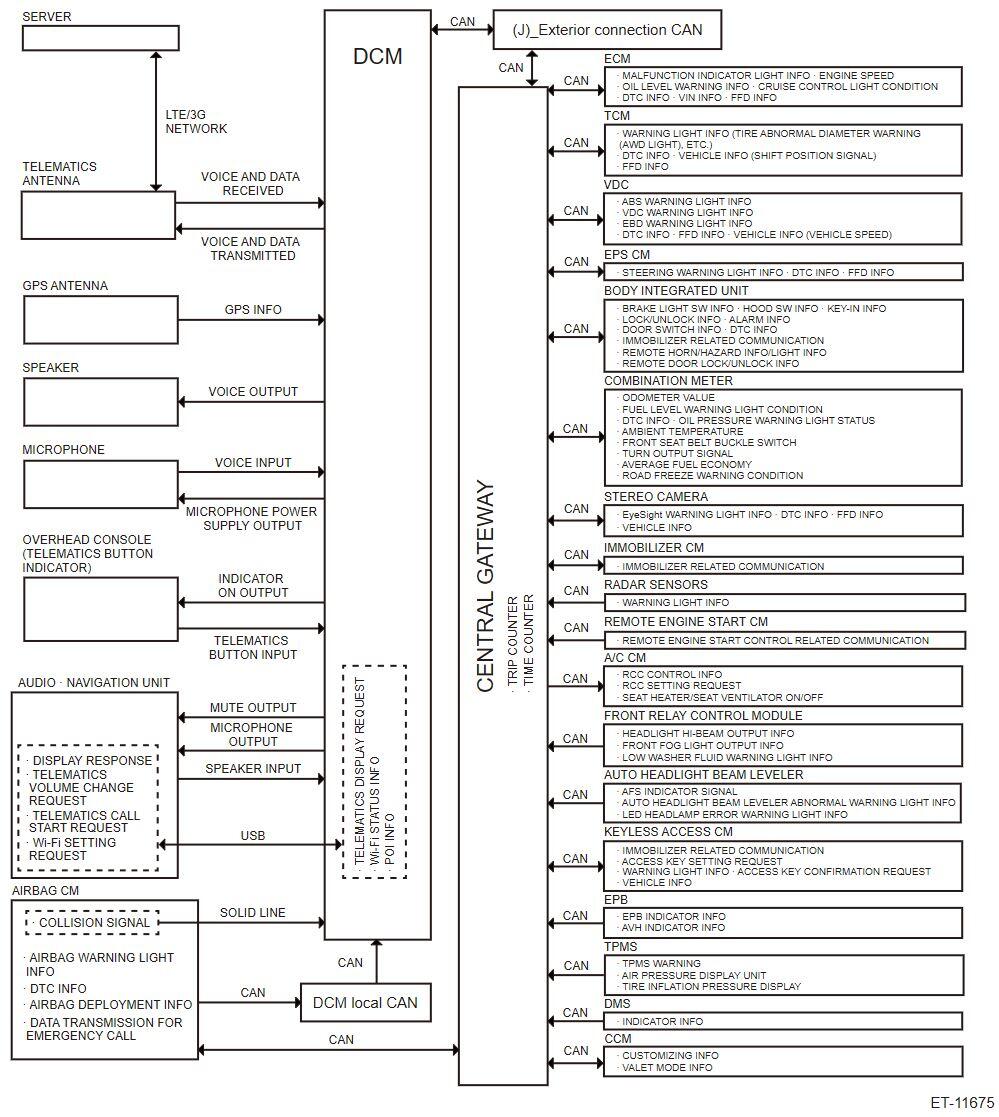

System Block Diagram
System Block Diagram
Main signals used between DCM and relevant Control Module
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
