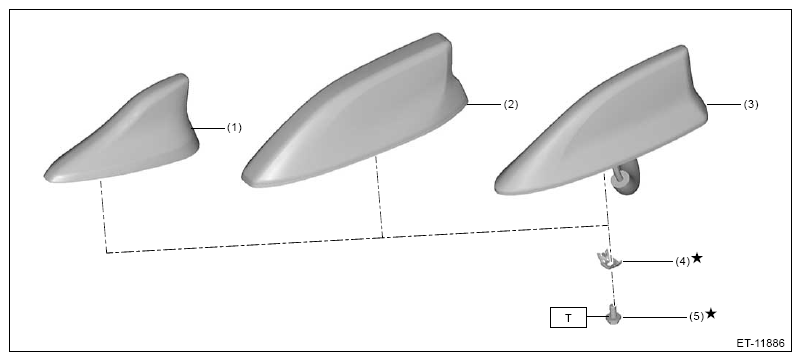

Roof Antenna
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Antenna ASSY roof (sedan model) |
| (2) |
Antenna ASSY roof (OUTBACK, model with smart rearview camera) |
| (3) |
Antenna ASSY roof (OUTBACK, model without smart rearview camera) |
| (4) |
Washer roof antenna |
| (5) |
Bolt ASSY roof antenna |
Tightening torque: N.m (kgf-m, ft-lb)
T: 4.5 ±1 (0.5±0.1, 3.3±0.7)
