When Using Cleaning Tools

Preparation tool:

ST: TOOL ADA COVER (87599VC000)

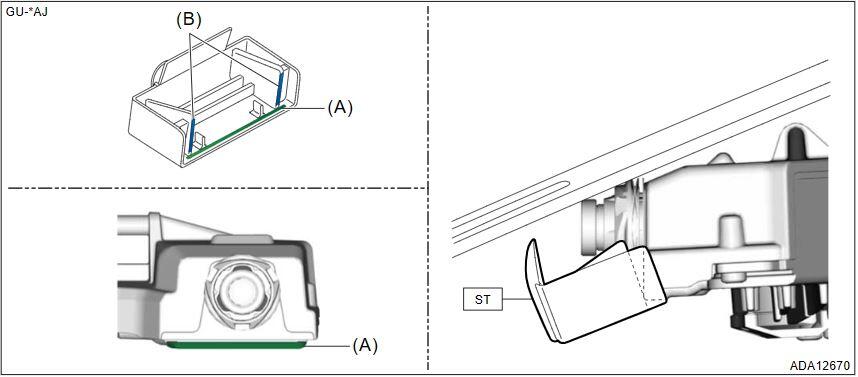

1. Align the ST pivot axis with the stereo camera pivot axis.

   Courtesy of SUBARU OF AMERICA, INC.

   (A) Pivot axis

   (B) Stopper

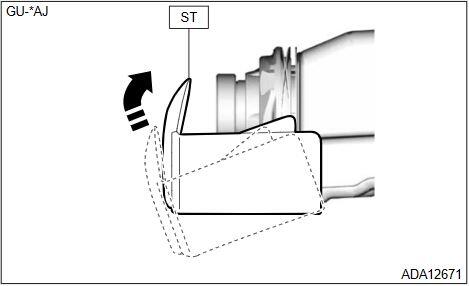

2. Turn ST in the arrow direction so that it is level.
   NOTE: Turn ST until its stopper comes in contact with the stereo camera unit.

   Courtesy of SUBARU OF AMERICA, INC.

3. Secure the stereo camera and ST with masking tape.
   CAUTION: Do not touch the camera lens. If touched, replace the stereo camera.

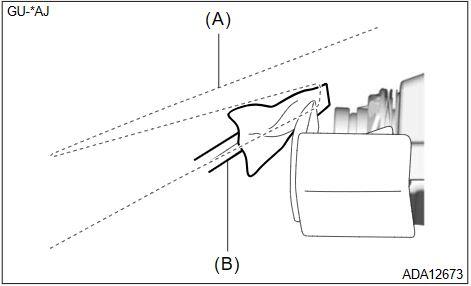

1. Wrap the tip of the remover, etc. with a dry clean cloth.
2. Put it between the windshield glass and ST for cleaning.

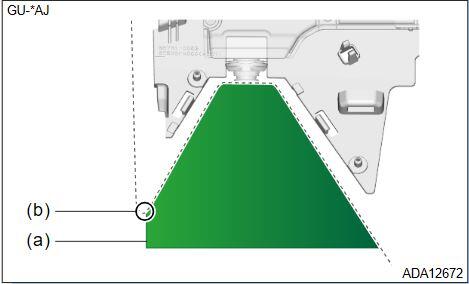

   NOTE: Clean the area shown in the figure.

   Courtesy of SUBARU OF AMERICA, INC.

   Courtesy of SUBARU OF AMERICA, INC.

   (A) Ceramic line

   (B) Remover tip

3. Remove the masking tape, and remove ST from the stereo camera.
   CAUTION: Do not touch the camera lens. If touched, replace the stereo camera.
