Engine Control System (2.5L) (Diagnostics) (2 Of 4)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0336: Crankshaft Position Sensor "A" Circuit Range/Performance
>>
General Description
>>
Component Description
Component Description
Courtesy of SUBARU OF AMERICA, INC.

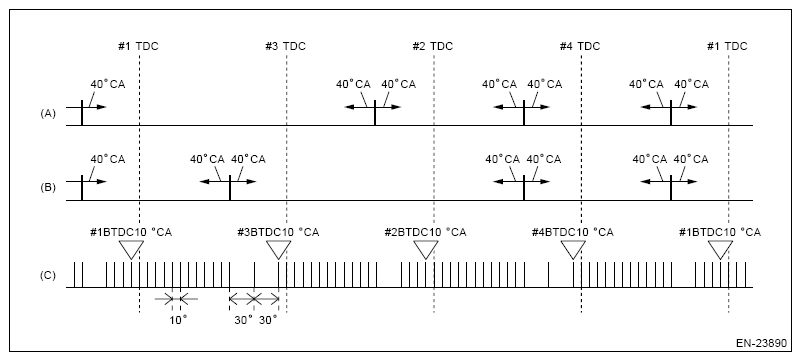

(A)
Intake cam signal RH
(B)
Intake cam signal LH
(C)
Crankshaft signal
Courtesy of SUBARU OF AMERICA, INC.

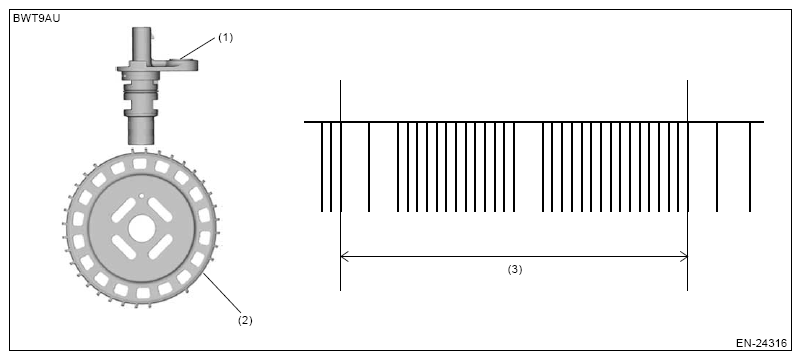

(1)
Crankshaft position sensor
(2)
Crankshaft position sensor plate
(3)
One crankshaft rotation
Courtesy of SUBARU OF AMERICA, INC.
