Component Description

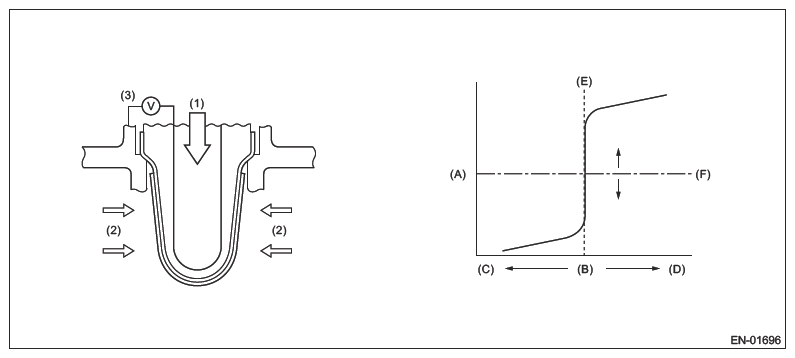

G16350321Courtesy of SUBARU OF AMERICA, INC.
(A) Electromotive force
(B) Air fuel ratio
(C) Lean
(D) Rich
(E) Theoretical air fuel ratio
(F) Comparative voltage
(1) Atmosphere
(2) Exhaust gas
(3) Electromotive force
