Component Description

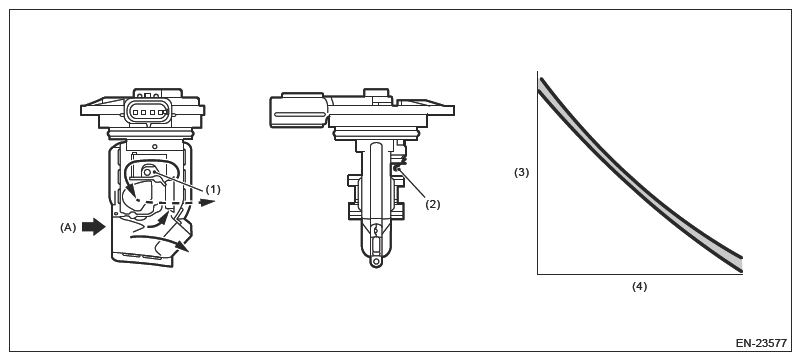

G16350288Courtesy of SUBARU OF AMERICA, INC.
(A) Air
(1) Air flow sensor
(2) Intake air temperature sensor
(3) Resistance value (Ω)
(4) Intake air temperature (°C (°F))
