Component Description

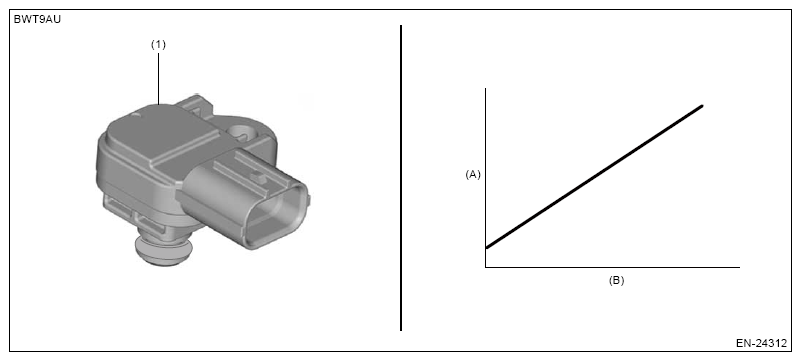

G16344906Courtesy of SUBARU OF AMERICA, INC.
(A) Output voltage
(B) Absolute pressure
(1) Manifold absolute pressure sensor
