Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0101: Mass Or Volume Air Flow Sensor "A" Circuit Range/Performance
>>
General Description
>>
Component Description

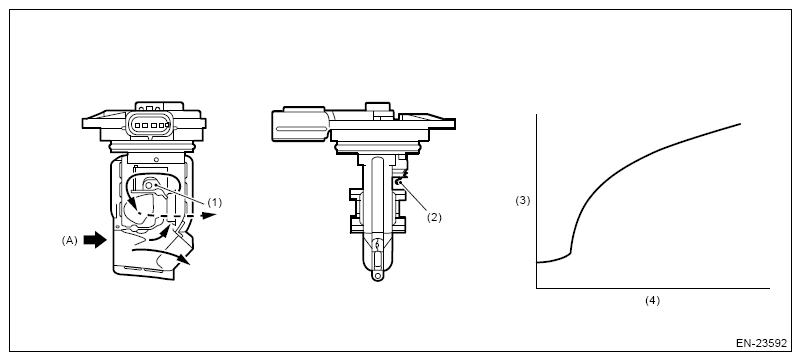

Component Description
Courtesy of SUBARU OF AMERICA, INC.
(A)
Air
(1)
Air flow sensor
(2)
Intake air temperature sensor
(3)
Frequency (kHz)
(4)
Amount of intake air (kg (lb)/s)
