Side Surface
NOTE:
Illustration indicates the LH side. The structure of RH side is symmetrical.

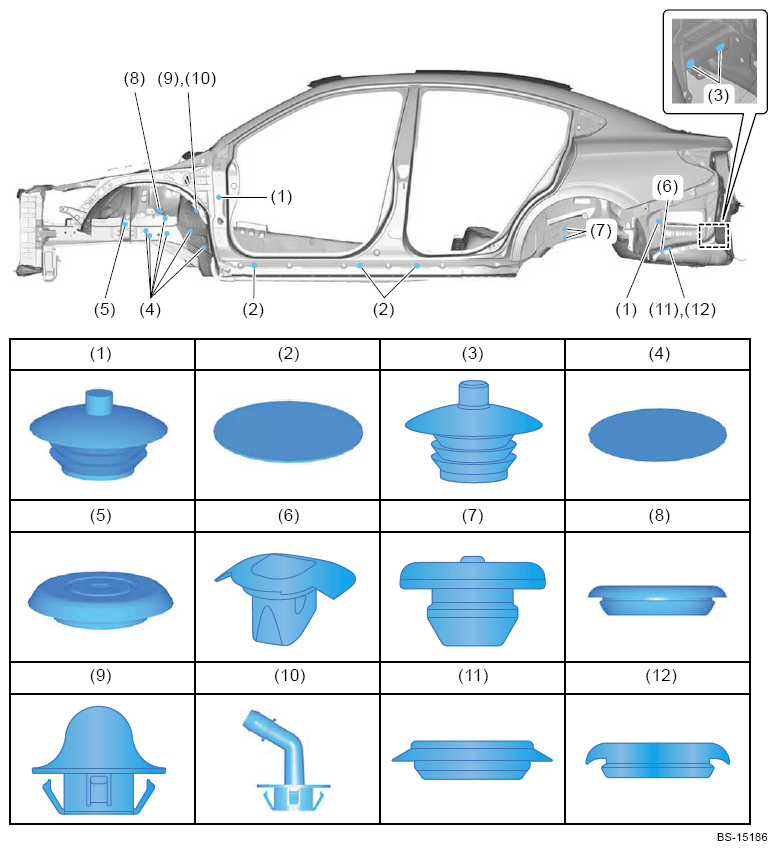

- Sedan model

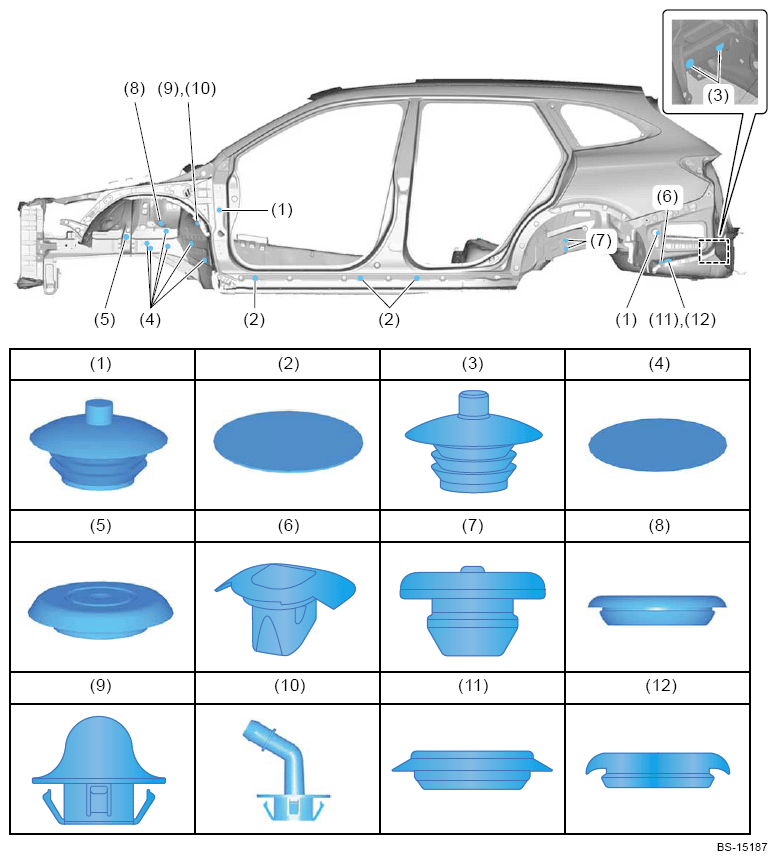

(1) Plug (2) Grommet sheet (3) Plug (4) Grommet sheet (5) Plug (6) Plug (7) Plug (8) Grommet (9) Grommet (without sunroof) (10) Grommet (with sunroof) (11) Plug (without sunroof) (12) Grommet (with sunroof) - OUTBACK model
(1) Plug (2) Grommet sheet (3) Plug (4) Grommet sheet (5) Plug (6) Plug (7) Plug (8) Grommet (9) Grommet (without sunroof) (10) Grommet (with sunroof) (11) Plug (without sunroof) (12) Grommet (with sunroof)
