Power Rear Gate Inner Switch Does Not Function

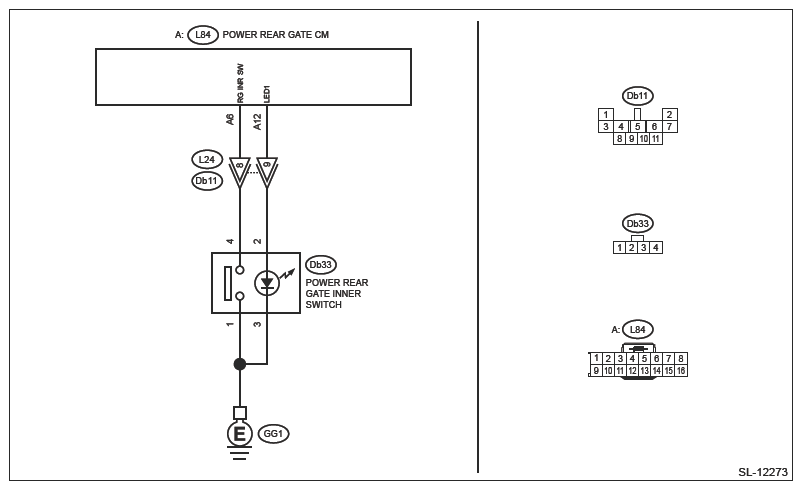

Wiring diagram:

Power rear gate system Ref. to WIRING SYSTEM>POWER REAR GATE SYSTEM>WIRING DIAGRAM .

G16395270Courtesy of SUBARU OF AMERICA, INC.
NOTE: Before performing diagnosis, initialize the power rear gate system by opening the power rear gate in manual operation, and then operating the power rear gate auto closer in the partially latched state.
  1. CHECK DATA MONITOR  .
    1. Turn the ignition switch to ON.
    2. Using the Subaru Select Monitor, check the following items in the [Data Monitor] of [Power Rear Gate]. Ref. to POWER REAR GATE (DIAGNOSTICS)>DATA MONITOR .
      • R/G inner SW

    Does the display change between [OFF] ←→ [ON] according to the power rear gate inner switch operation?

    Yes:  Input circuit is normal.

    No:  Go to  2.

  2. CHECK HARNESS (OPEN CIRCUIT)  .
    1. Disconnect the Power rear gate Control Module connector in the order of (L85) → (L84).
    2. Disconnect the power rear gate inner switch connector.
    3. Using a tester, measure the resistance between Power rear gate Control Module connector and power rear gate inner switch connector.

      Connector & terminal

      (L84) No. 6 - (Db33) No. 4:

    Is the resistance less than 10 Ω?

    Yes:  Go to  3.

    No:  Repair or replace the open circuit of harness.

  3. CHECK HARNESS (GROUND SHORT CIRCUIT)  .

    Using a tester, measure the resistance between Power rear gate Control Module connector and chassis ground.

    Connector & terminal

    (L84) No. 6 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  4.

    No:  Repair or replace the short circuit of the harness.

  4. CHECK HARNESS (OPEN CIRCUIT)  .

    Using a tester, measure the resistance between power rear gate inner switch connector and chassis ground.

    Connector & terminal

    (Db33) No. 1 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes:  Go to  5.

    No:  Repair or replace the open circuit of harness.

  5. CHECK POWER REAR GATE INNER SWITCH  .

    Using a tester, measure the resistance between power rear gate inner switch terminals.

    Terminals

    No. 1 - No. 4:

    Is the resistance 1 MΩ or more at OFF, and less than 1 Ω at ON?

    Yes:  Go to  6.

    No:  Replace the power rear gate inner switch. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE INNER SWITCH .

  6. CHECK CONNECTOR  .

    Is there poor contact of connector?

    Yes:  Repair or replace the poor contact of connector.

    No:  Replace Power rear gate Control Module. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE CONTROL MODULE .
