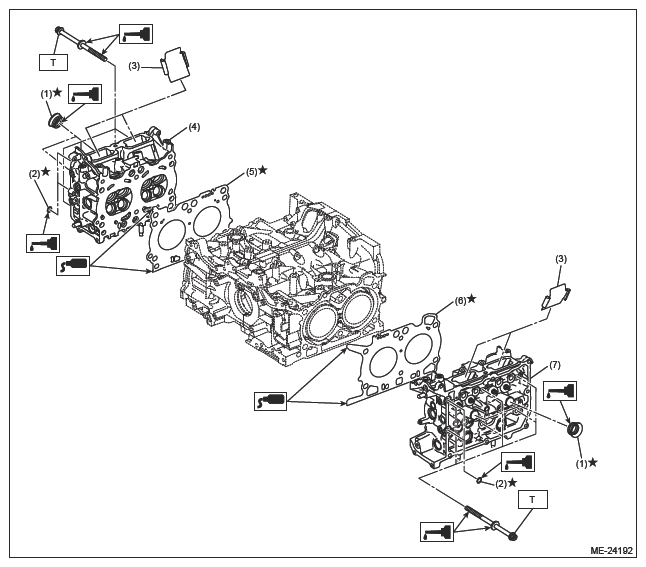

Cylinder Head
- 2.0 L model
| (1) | Spark plug pipe gasket |
| (2) | O-ring |
| (3) | Cylinder head plate |
| (4) | Cylinder head RH |
| (5) | Cylinder head gasket RH |
| (6) | Cylinder head gasket LH |
| (7) | Cylinder head LH |
Tightening torque: N.m (kgf-m, ft-lb)
T Ref. to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .
- 2.5 L model
| (1) | Spark plug pipe gasket |
| (2) | O-ring |
| (3) | Cylinder head plate |
| (4) | Cylinder head RH |
| (5) | Cylinder head gasket RH |
| (6) | Cylinder head gasket LH |
| (7) | Cylinder head LH |
Tightening torque: N.m (kgf-m, ft-lb)
T Ref. to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .
