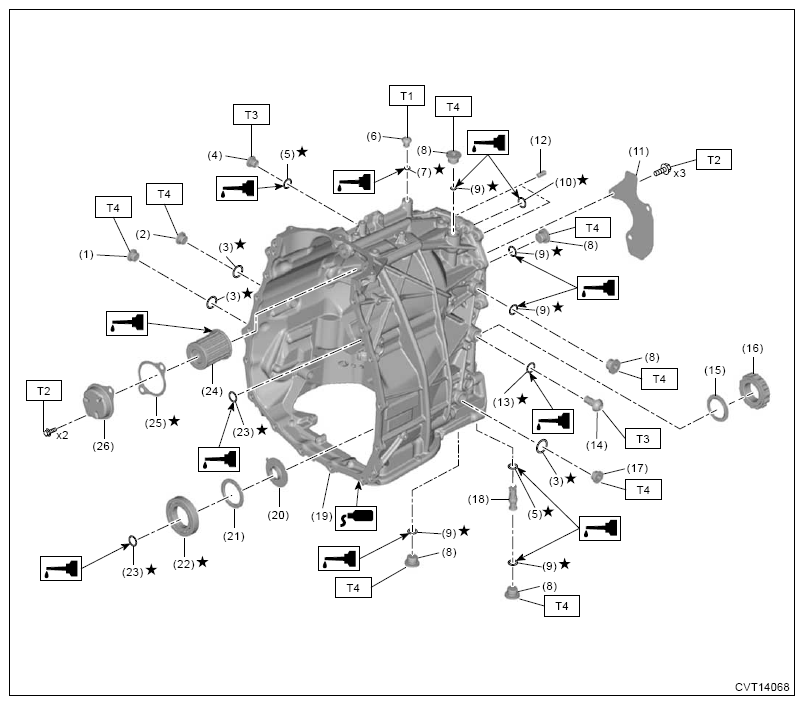

Transmission Case
| (1) | Filler plug (CVTF) |
| (2) | Filler plug (for overhaul) |
| (3) | Gasket |
| (4) | Plug |
| (5) | O-ring |
| (6) | Plug |
| (7) | O-ring |
| (8) | Plug |
| (9) | O-ring |
| (10) | O-ring |
| (11) | Oil stopper plate |
| (12) | Knock pin |
| (13) | O-ring |
| (14) | Plug |
| (15) | Thrust bearing |
| (16) | Roller bearing |
| (17) | Plug |
| (18) | Oil control valve holder |
| (19) | Transmission case |
| (20) | Oil guide |
| (21) | Thrust bearing |
| (22) | Roller bearing |
| (23) | Seal ring |
| (24) | CVTF filter |
| (25) | Gasket |
| (26) | CVTF filter cover |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 17 (1.7, 12.5)
T3: 22 (2.2, 16.2)
T4: 50 (5.1, 36.9)
