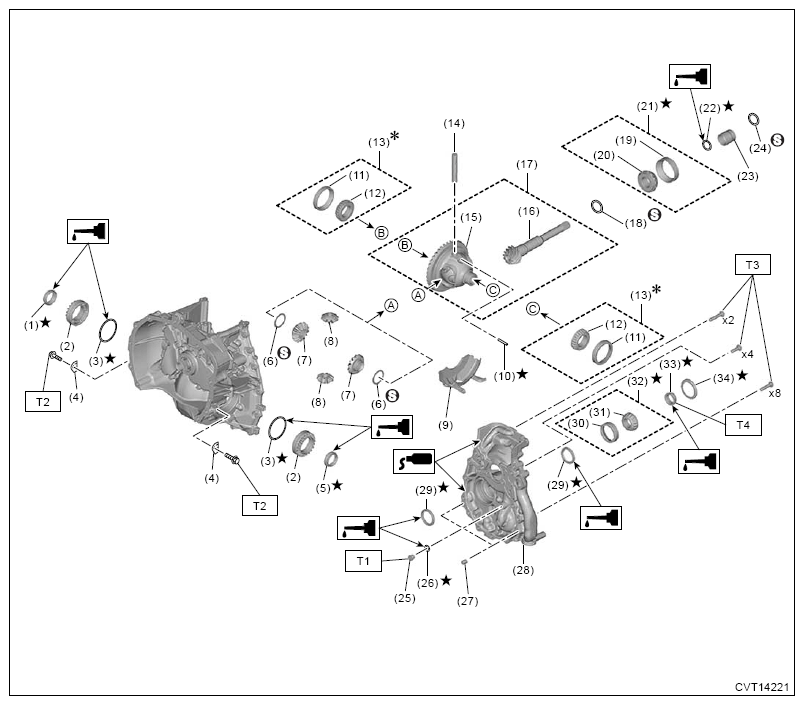

Front Differential Gear
| (1) | Differential side retainer oil seal RH |
| (2) | Differential side retainer |
| (3) | O-ring |
| (4) | Lock plate |
| (5) | Differential side retainer oil seal LH |
| (6) | Thrust washer |
| (7) | Differential bevel gear |
| (8) | Differential bevel pinion |
| (9) | Oil baffle |
| (10) | Spring pin |
| (11) | Side bearing outer race |
| (12) | Side bearing inner race |
| (13) | Side bearing |
| (14) | Pinion shaft |
| (15) | Differential case |
| (16) | Drive pinion |
| (17) | Hypoid gear set |
| (18) | Drive pinion shim |
| (19) | Taper roller bearing (front) outer race |
| (20) | Taper roller bearing (front) inner race |
| (21) | Taper roller bearing (front) |
| (22) | O-ring |
| (23) | Drive pinion spacer |
| (24) | Drive pinion washer |
| (25) | Plug |
| (26) | O-ring |
| (27) | Knock pin |
| (28) | Drive pinion retainer |
| (29) | Oil seal |
| (30) | Taper roller bearing (rear) outer race |
| (31) | Taper roller bearing (rear) inner race |
| (32) | Taper roller bearing (rear) |
| (33) | Lock nut |
| (34) | Plug |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 22 (2.2, 16.2)
T2: 25 (2.5, 18.4)
T3: 43 (4.4, 31.7)
T4: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DRIVE PINION>INSTALLATION .
*: If the side bearing inner race is removed from the differential case, replace the side bearing with a new part.
