Rear Suspension System: Stabilizer: Removal: Stabilizer

NOTE: Components: Ref. to REAR SUSPENSION>GENERAL DESCRIPTION>COMPONENT>REAR SUSPENSION .
  1. Release the parking brake.
  2. Using the Subaru Select Monitor, perform the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
  5. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  6. Remove the rear suspension assembly. Ref. to REAR SUSPENSION>SUB FRAME>REMOVAL .

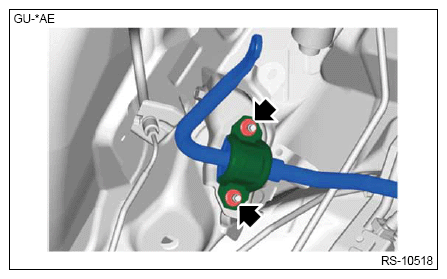

  7. Remove the stabilizer rear.
    1. Remove the nut.
    2. Remove the clamp stabilizer.
    3. Remove the stabilizer rear.
      G16766799Courtesy of SUBARU OF AMERICA, INC.
