Rear Seat Belt

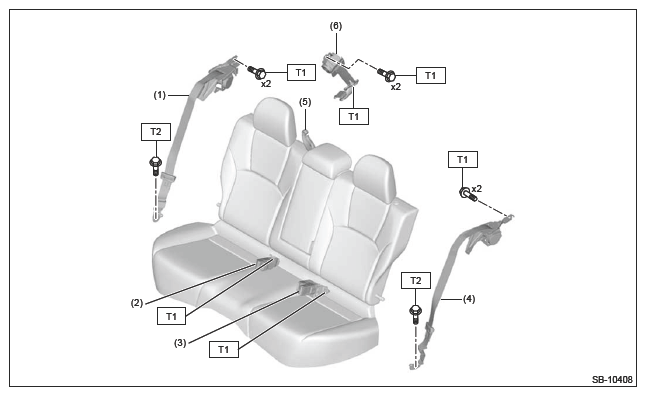

Fig 1: Rear Seat Belt Components Location

G16764108

Courtesy of SUBARU OF AMERICA, INC.

(1)	Belt ASSY rear OUT RH
(2)	Belt ASSY rear INN center RH
(3)	Belt ASSY rear INN center LH
(4)	Belt ASSY rear OUT LH
(5)	Belt guide
(6)	Belt ASSY rear OUT CTR

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: Ref. to SEAT BELT SYSTEM>REAR SEAT BELT>INSTALLATION>BELT ASSEMBLY REAR OUT RH AND LH .
