Check Seat Belt Switch: Notes
- Driver's seat

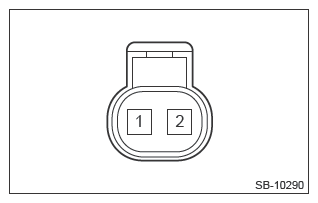

Check the resistance between the terminals when the belt assembly front INN is in each of the following operation conditions.
Terminal No. Inspection conditions Standard 2 - 1 Tongue plate inserted 1 MΩ or more 2 - 1 Tongue plate detached 1 Ω or less Replace the belt assembly front INN if the inspection result is not within the standard.
- Passenger's seat
Measure the current value between the terminals when the belt assembly front INN is in each of the following operation conditions.
| Terminal No. | Inspection conditions | Standard |
|---|---|---|
| 1 - 2 | Tongue plate inserted | 12 - 18 mA |
| 1 - 2 | Tongue plate detached | 4 - 7 mA |
Replace the belt assembly front INN if the inspection result is not within the standard.
