Rear Gate Lock/Unlock And Open/Close Operations

  1. Open and close the rear gate several times for smooth movement.
  2. Operate the rear gate emergency release lever to check that the rear gate can be locked and unlocked properly.

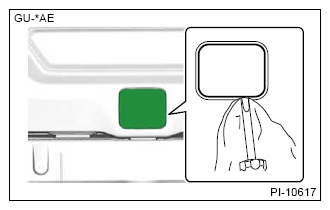

    1. Using a tool such as a flat tip screwdriver, remove the cover inside the rear gate.
      G16760280Courtesy of SUBARU OF AMERICA, INC.

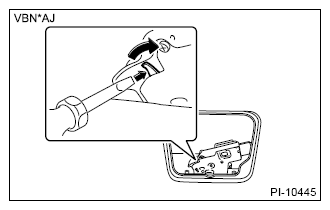

    2. Operate the lever using a tool such as a flat tip screwdriver to check that the unlock operation can be performed normally.
      G16760281Courtesy of SUBARU OF AMERICA, INC.
