Fuel Delivery Pipe

Using a new gasket, install the fuel delivery pipe B.
Tightening torque :

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

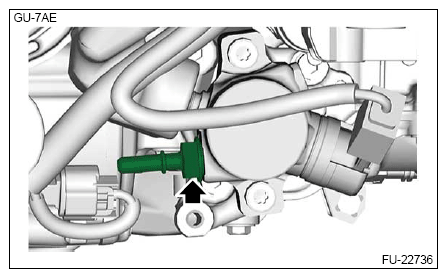

Connect the fuel delivery pipe A. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .

Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the fuel pipe protector No. 1, and tighten the bolts.
Tightening torque :

19 N.m (1.9 kgf-m, 14.0 ft-lb)
- 2.0 L model
Courtesy of SUBARU OF AMERICA, INC.
- 2.5 L model
Courtesy of SUBARU OF AMERICA, INC.
Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSTALLATION .
