Fuel Filler Cap: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL FILLER PIPE .
  1. Open the fuel filler lid.
  2. Remove the fuel filler cap.

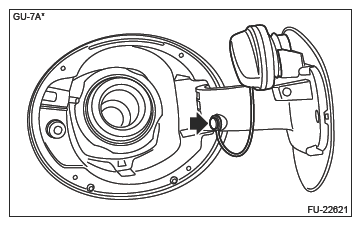

  3. Remove the clip and remove the fuel filler cap from the fuel lid.
    G16760660Courtesy of SUBARU OF AMERICA, INC.
