Camshaft Position Sensor
>>
Removal
>>
Intake
>>
LH Side
LH Side
Disconnect the ground terminal from battery sensor. Ref. to
REPAIR CONTENTS>NOTE>BATTERY
.

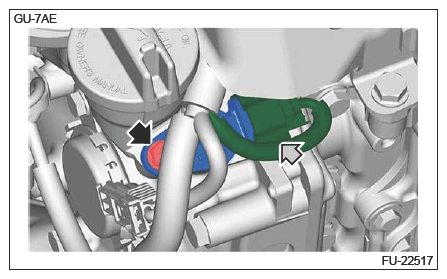

Disconnect the connector and remove the camshaft position sensor.
Courtesy of SUBARU OF AMERICA, INC.
