Front Exhaust Pipe: Installation

Tightening torque  :

23 N.m (2.3 kgf-m, 17.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

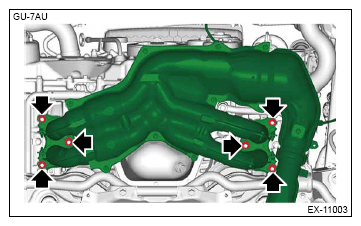

1. Using a new gasket, temporarily install the front exhaust pipe.
   CAUTION: Be sure to install the front exhaust pipe to the cylinder head.

   Courtesy of SUBARU OF AMERICA, INC.

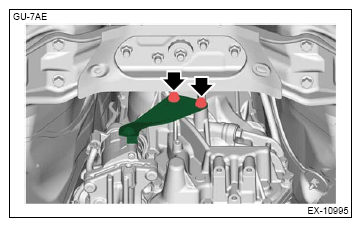

2. Install the bolts which secure front exhaust pipe to hanger bracket.

   Tightening torque  :

   70 N.m (7.1 kgf-m, 51.6 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

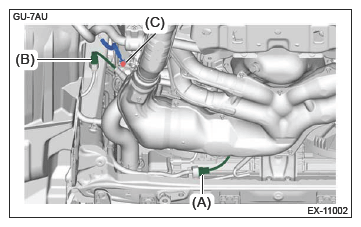

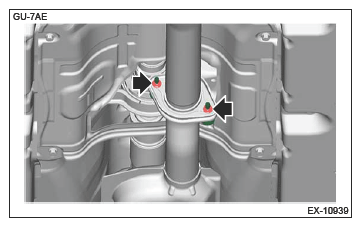

3. Tighten the nuts which hold the front exhaust pipe.

   Tightening torque  :

   65 N.m (6.6 kgf-m, 47.9 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

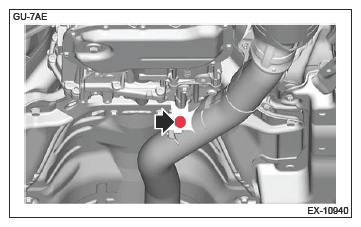

Tightening torque  :

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

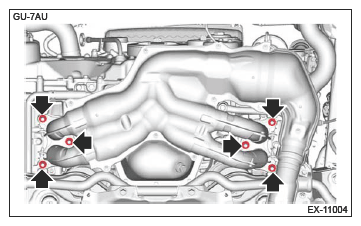

Tightening torque  :

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
