Active Grille Shutter

Impreza model

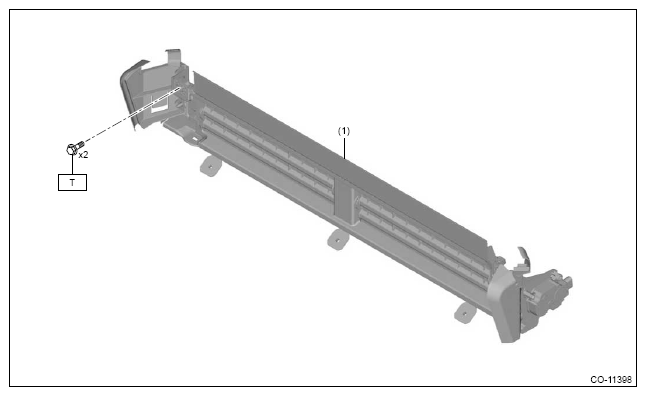

Fig 1: Active Grille Shutter Components Location - Impreza Model
Courtesy of SUBARU OF AMERICA, INC.

(1) Active grille shutter (model with active grille shutter)

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
Crosstrek model

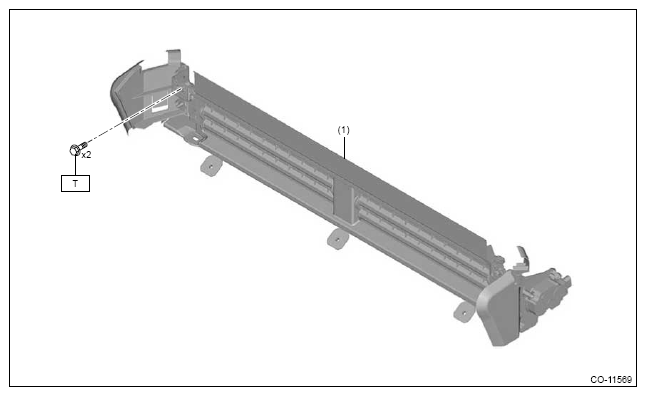

Fig 2: Active Grille Shutter Components Location - Crosstrek Model
Courtesy of SUBARU OF AMERICA, INC.

(1) Active grille shutter (model with active grille shutter)

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
