Active Grille Shutter: Installation

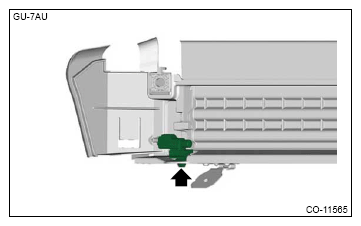

Install the ambient sensor.

Courtesy of SUBARU OF AMERICA, INC.

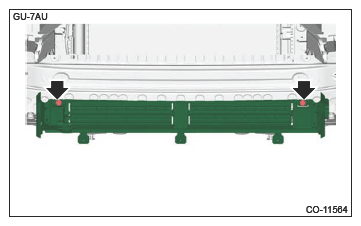

Install the active grille shutter.
Tightening torque :

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

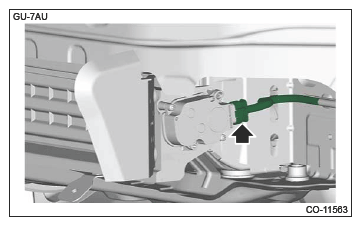

Connect the connector to the active grille shutter actuator.

Courtesy of SUBARU OF AMERICA, INC.

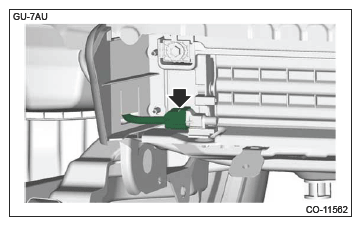

Connect the connector to the ambient sensor.

Courtesy of SUBARU OF AMERICA, INC.
Install the bracket active grille shutter. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION>BUMPER BEAM .
Install the energy absorber LWR. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION>BUMPER BEAM .
Install the energy absorber foam front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION>BUMPER BEAM .
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION>BUMPER FACE .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
When the active grille shutter has been replaced, perform the calibration (execute the system operation check for ACTGS control).
2.0 L model :

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>ACTIVE TEST .

2.5 L model :

Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.5)>ACTIVE TEST .
