Main Switch
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
.
NOTE:
If it is difficult to remove the switch power window main, remove it together with the panel power window switch front from the trim panel front door before the work. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>DISASSEMBLY
.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
- Remove the switch power window main.

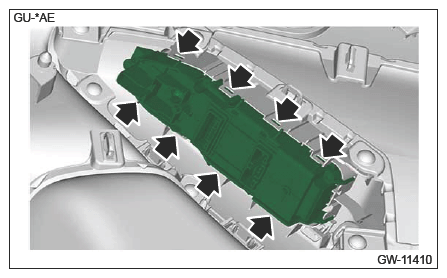

- Release the claw.
- Remove the switch power window main.
