Deflector Assembly

Install the deflector.

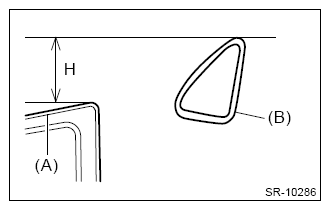

After installation, measure the height from the roof panel when deflector is activated.
Deflector to Roof panel H:

11 mm (0.4 in)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Roof panel
(B)	Deflector
