Rear Lock Button: Removal

NOTE: The rear lock button is integrated with the switch opener rear gate.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the spoiler assembly roof side. Ref. to EXTERIOR/INTERIOR TRIM>ROOF SPOILER>REMOVAL .
  4. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
  5. Remove the garnish assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>DISASSEMBLY .
  6. Remove the switch opener rear gate. Ref. to SECURITY AND LOCKS>REAR GATE OPENER BUTTON>REMOVAL .
  7. Remove the switch request (lock).

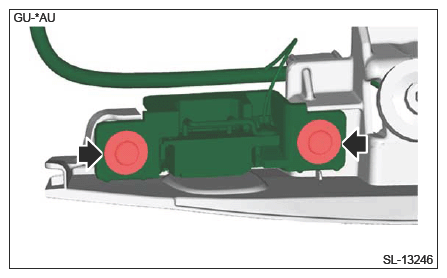

    1. Remove the screws.
    2. Remove the rear lock button.
      G16762322Courtesy of SUBARU OF AMERICA, INC.

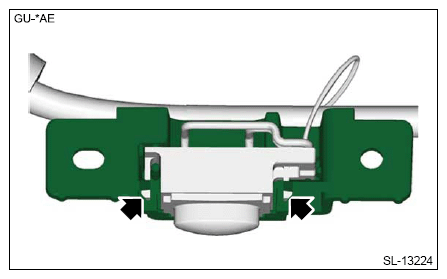

    3. Release the claw.
    4. Remove the garnish switch bracket.
    G16762323Courtesy of SUBARU OF AMERICA, INC.
