Keyless Access Control Module: Removal

  1. When replacing the keyless access control module, store the [Keyless Access with Push Button Start (Collation)] customizing information. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>CUSTOMIZE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  4. Remove the ornament panel mid passenger. Ref. to EXTERIOR/INTERIOR TRIM>CENTOR CLUSTER>REMOVAL .
  5. Remove the light pocket. Ref. to LIGHTING SYSTEM>LED ILLUMINATION LIGHT>REMOVAL>GLOVE BOX LIGHT .
  6. Remove the panel instrument passenger. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>BACK PANEL .

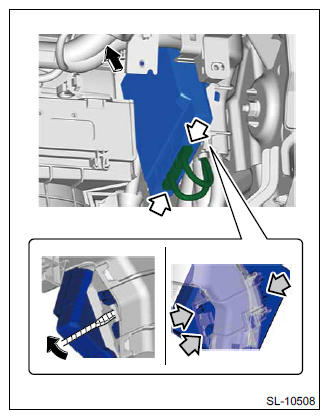

  7. Remove the keyless access control module.
    CAUTION: Be careful to keep water and other foreign materials away from the keyless access control module terminals.
    1. Disconnect the connector.
    2. Release the claws using a flat tip screwdriver or similar tool wrapped with protection tape.
    3. Release the guide.
    4. Remove the keyless access control module.
    G11246396Courtesy of SUBARU OF AMERICA, INC.
