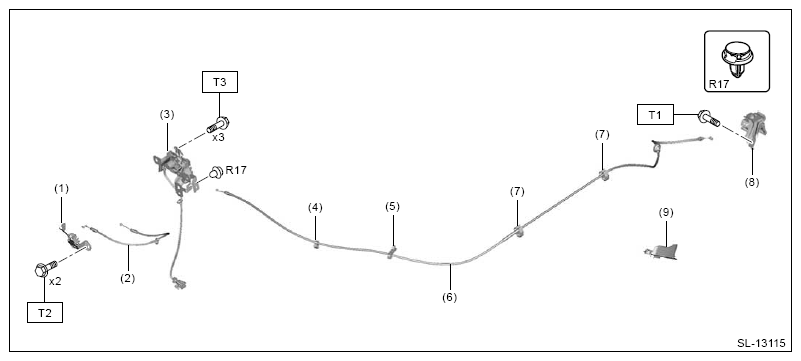

Front Hood Lock
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Lever ASSY safety |
| (2) |
Cable safety |
| (3) |
Lock ASSY front hood |
| (4) |
Clip |
| (5) |
Clip |
| (6) |
Cable ASSY front hood |
| (7) |
Clip |
| (8) |
Opener handle |
| (9) |
Protector cable |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
T3: 33 (3.4, 24.3)
