System Block Diagram

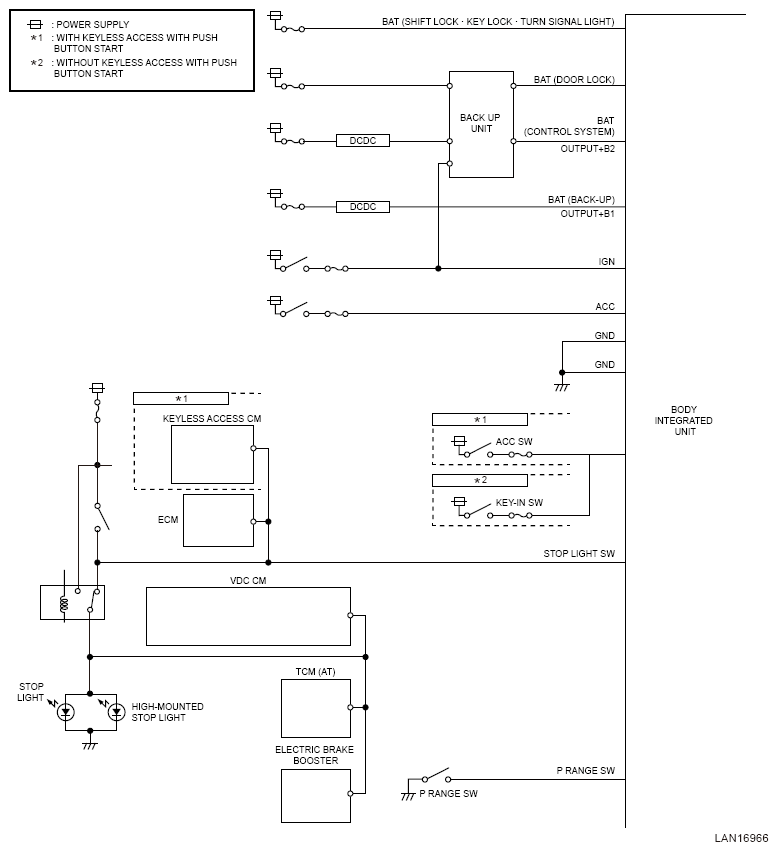

G16768520Courtesy of SUBARU OF AMERICA, INC.

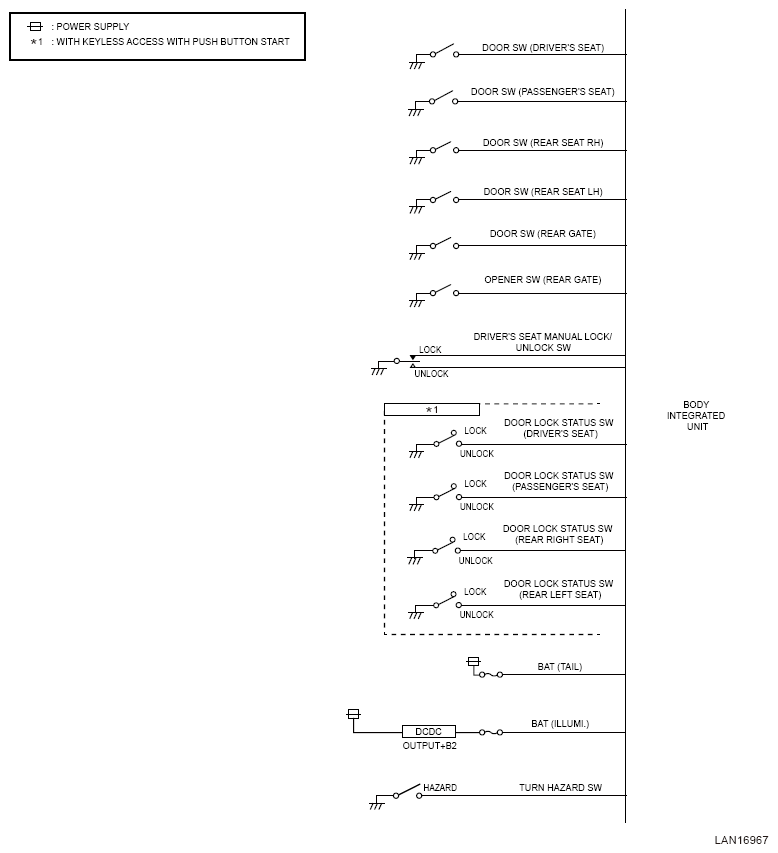

G16768521Courtesy of SUBARU OF AMERICA, INC.

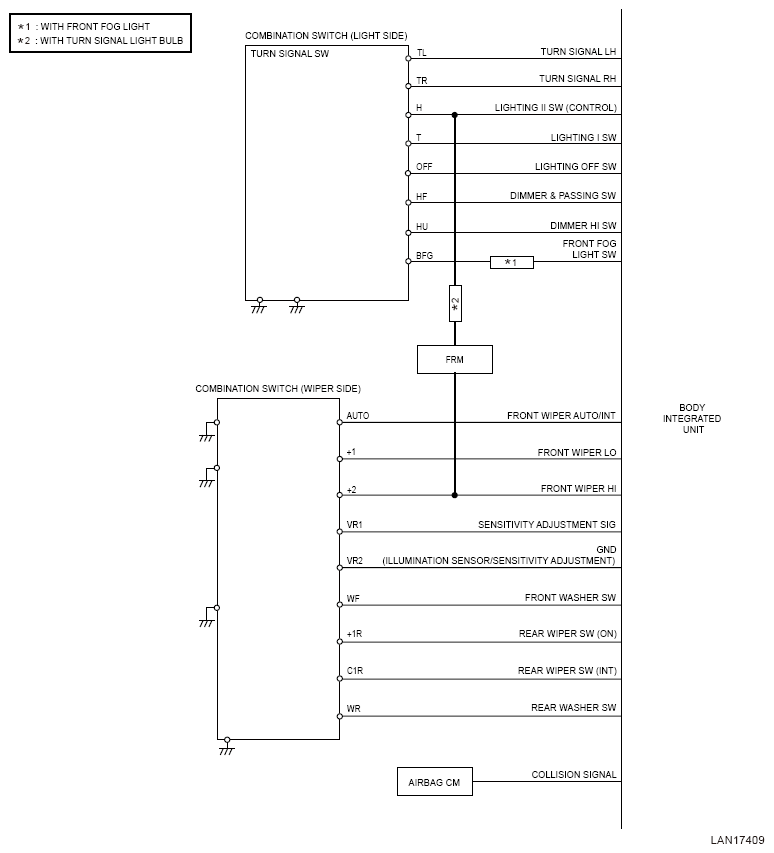

G16768522Courtesy of SUBARU OF AMERICA, INC.

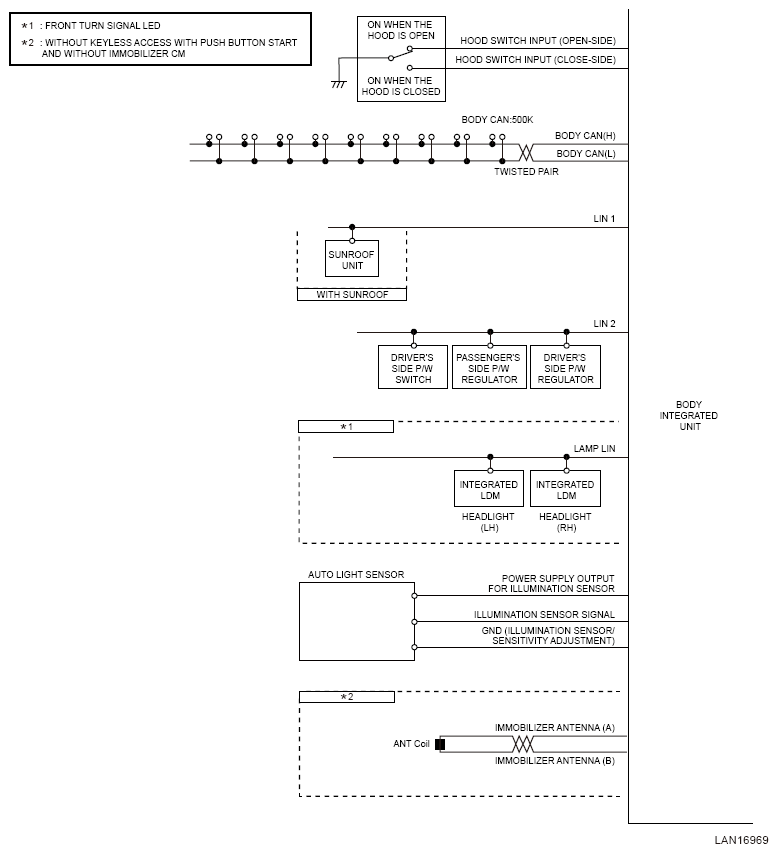

G16768523Courtesy of SUBARU OF AMERICA, INC.

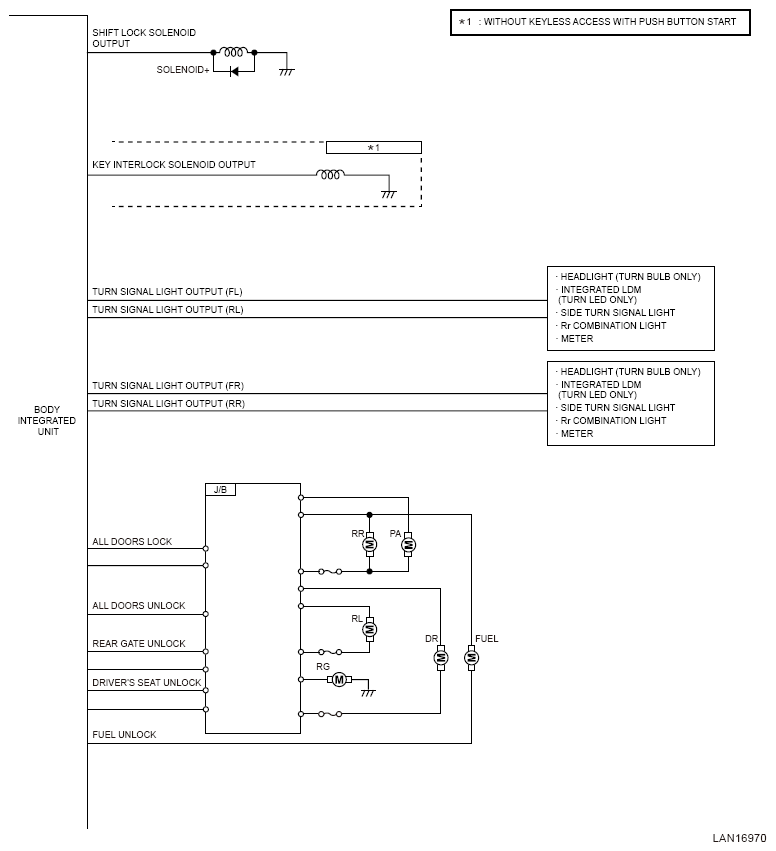

G16768524Courtesy of SUBARU OF AMERICA, INC.

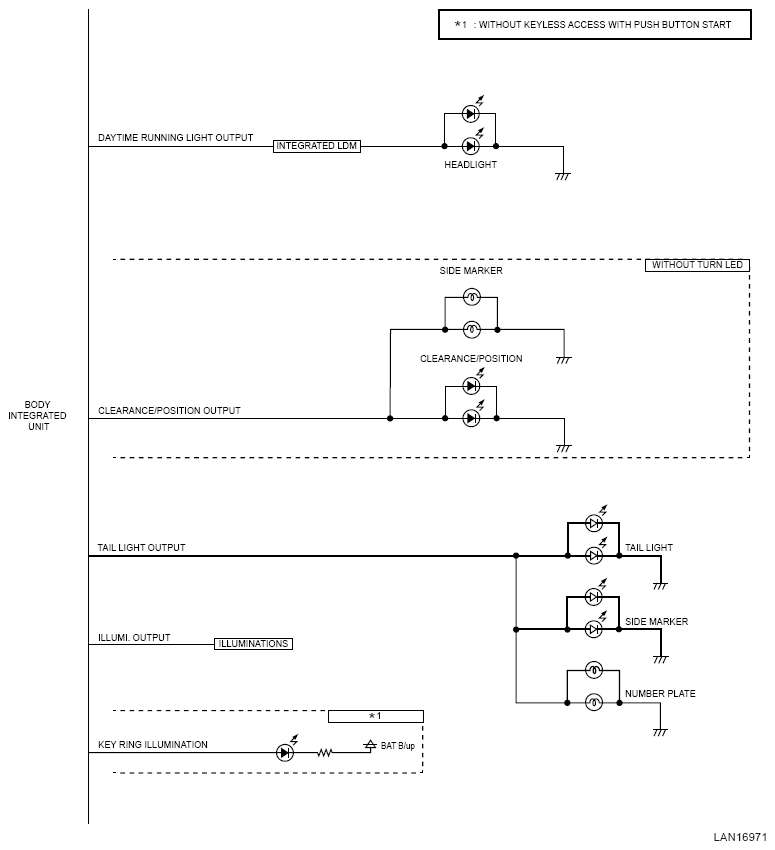

G16768525Courtesy of SUBARU OF AMERICA, INC.

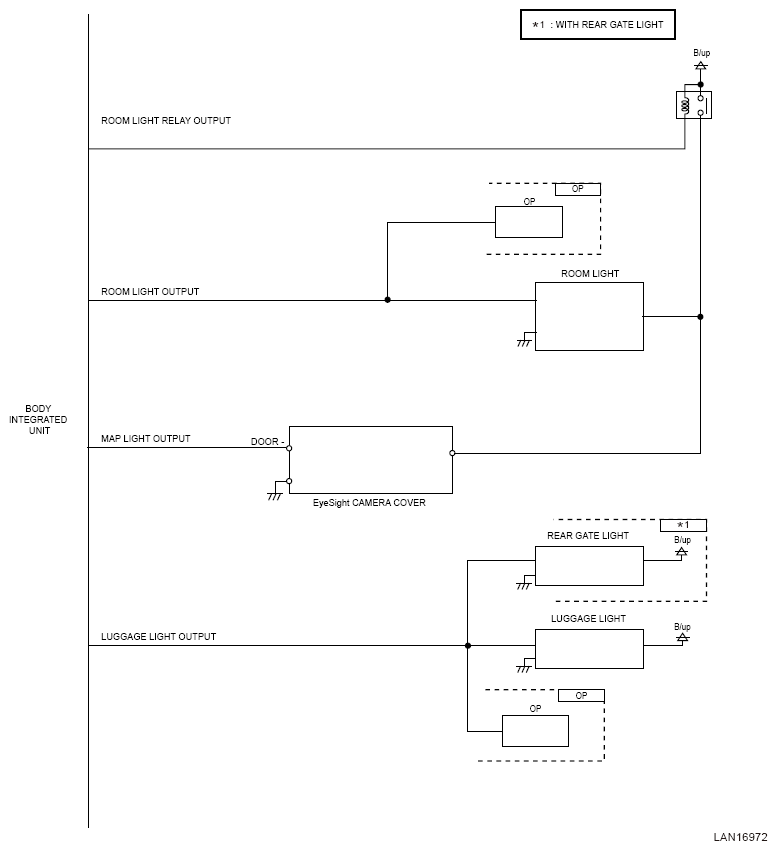

G16768526Courtesy of SUBARU OF AMERICA, INC.

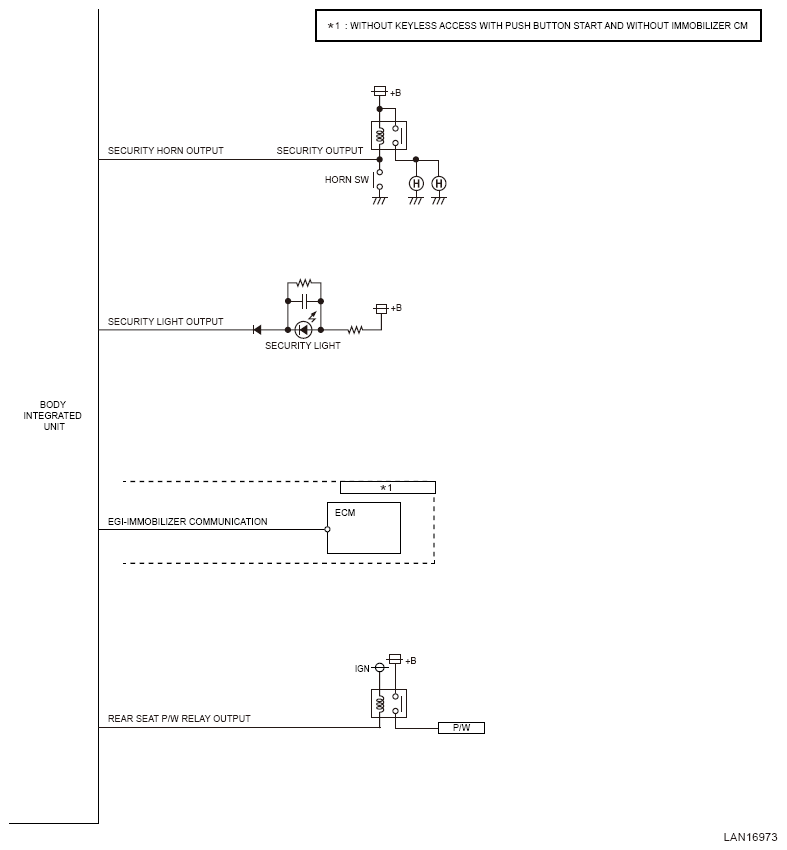

G16768527Courtesy of SUBARU OF AMERICA, INC.
