Transmission Harness: Removal

  1. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>AIR BREATHER HOSE>REMOVAL .
  2. Disconnect the connector and ground terminal as shown in the figure, and release the clips.
    • Except for WILDERNESS model

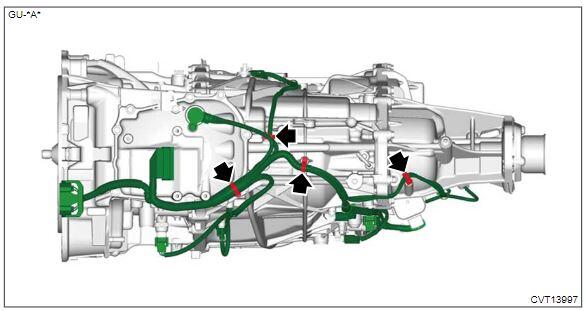

      G00674381Courtesy of SUBARU OF AMERICA, INC.

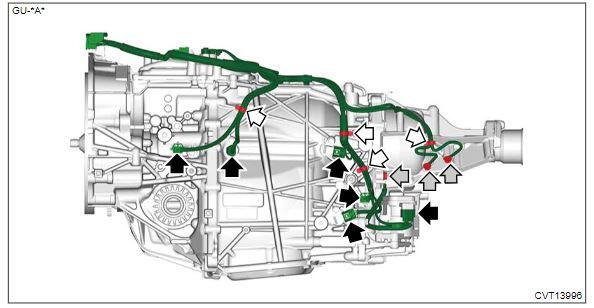

      G00674382Courtesy of SUBARU OF AMERICA, INC.

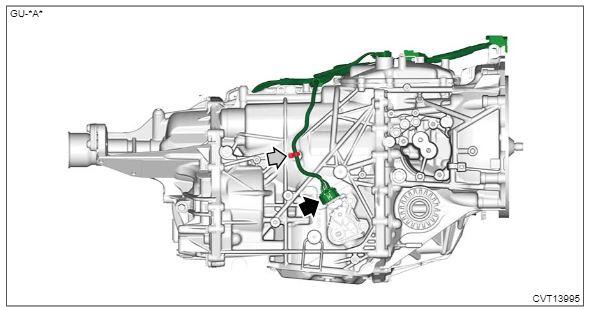

      G00674383Courtesy of SUBARU OF AMERICA, INC.
    • WILDERNESS model

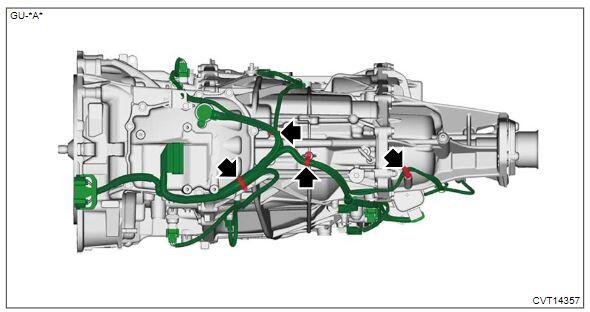

      G00674384Courtesy of SUBARU OF AMERICA, INC.

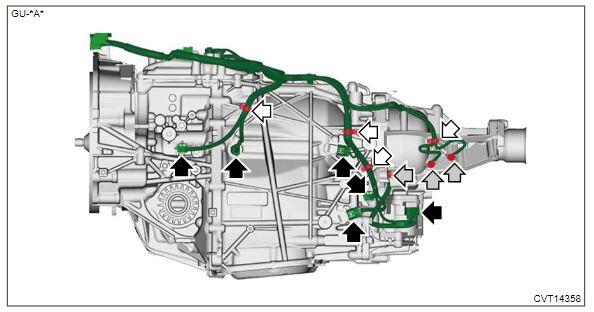

      G00674385Courtesy of SUBARU OF AMERICA, INC.

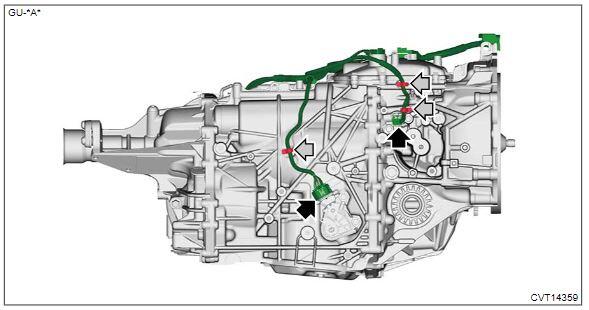

      G00674386Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the transmission harness from the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CONTROL VALVE BODY>REMOVAL .
