Transfer Clutch: Removal

  1. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>EXTENSION CASE>REMOVAL .

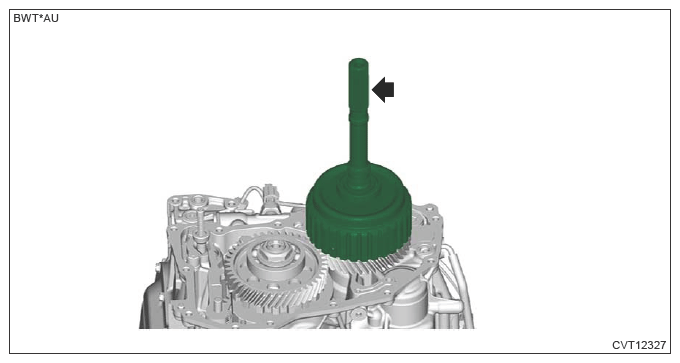

  2. Remove the rear drive shaft.
    G13936090Courtesy of SUBARU OF AMERICA, INC.

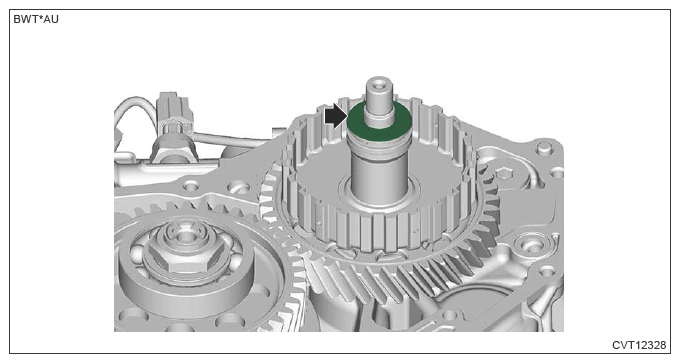

  3. Remove the thrust bearing.
    G13936091Courtesy of SUBARU OF AMERICA, INC.

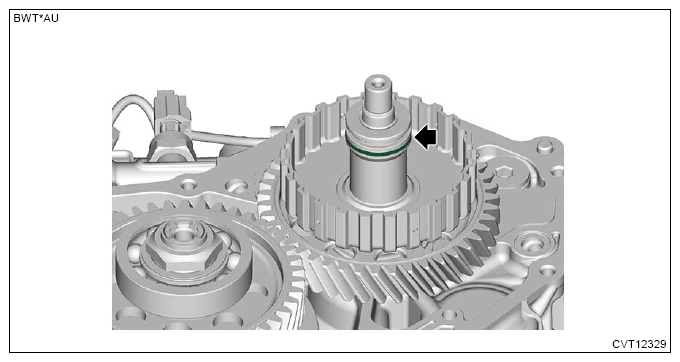

  4. Remove the seal rings.
G13936092Courtesy of SUBARU OF AMERICA, INC.
