Internal Gear

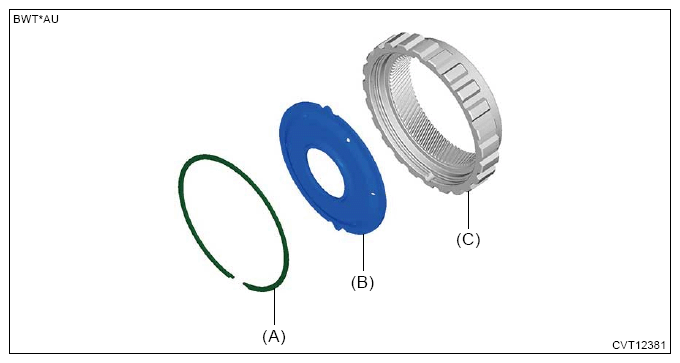

  1. Install the thrust gear plate and snap ring.
    G16342351Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
    (B) Thrust gear plate
    (C) Internal gear

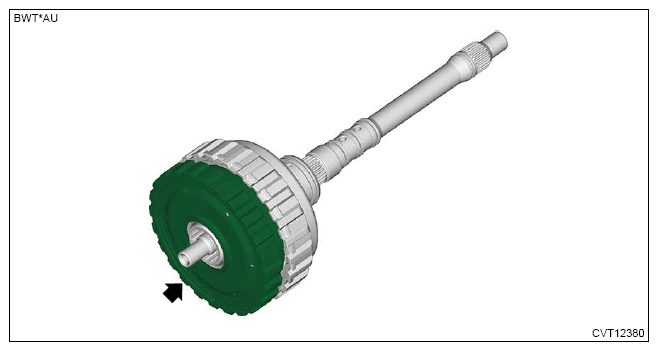

  2. Install the internal gear.
G13936264Courtesy of SUBARU OF AMERICA, INC.
