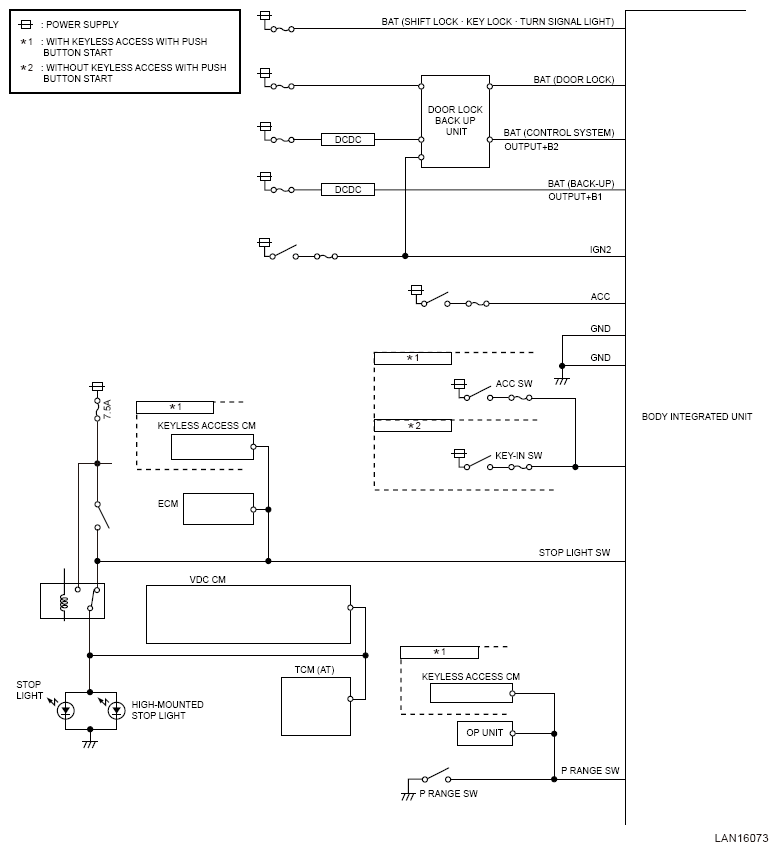

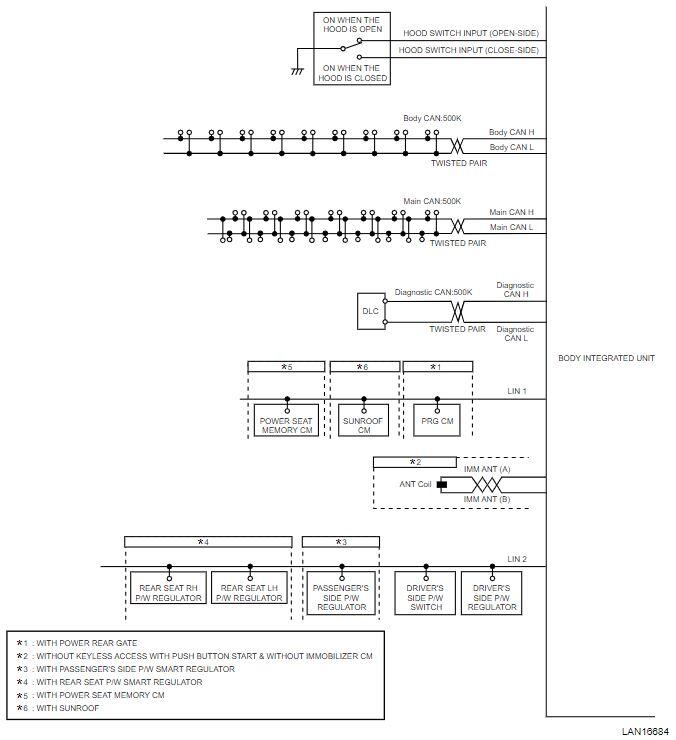

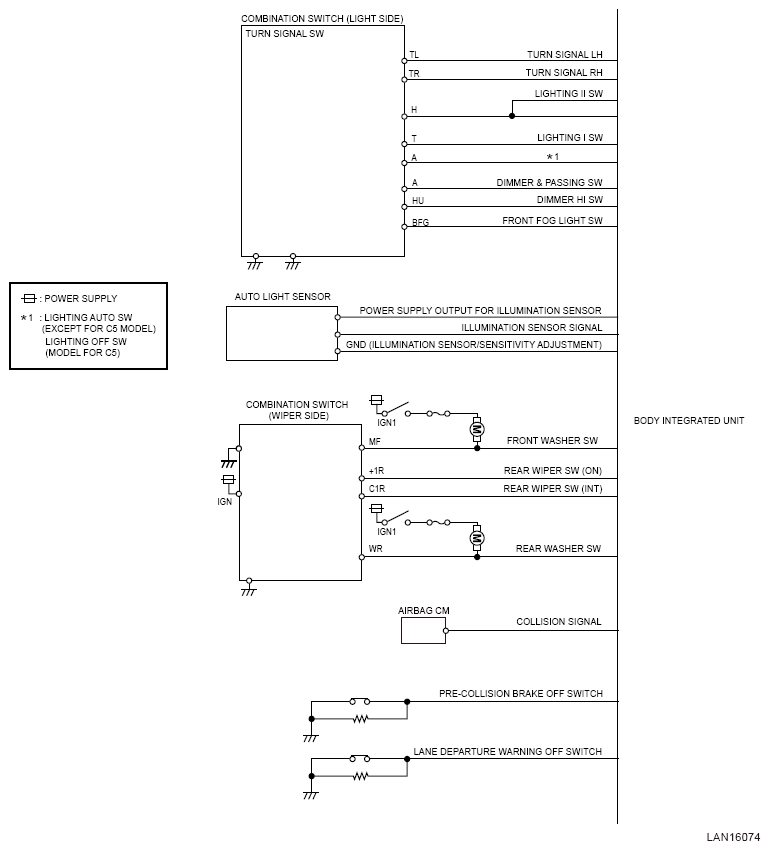

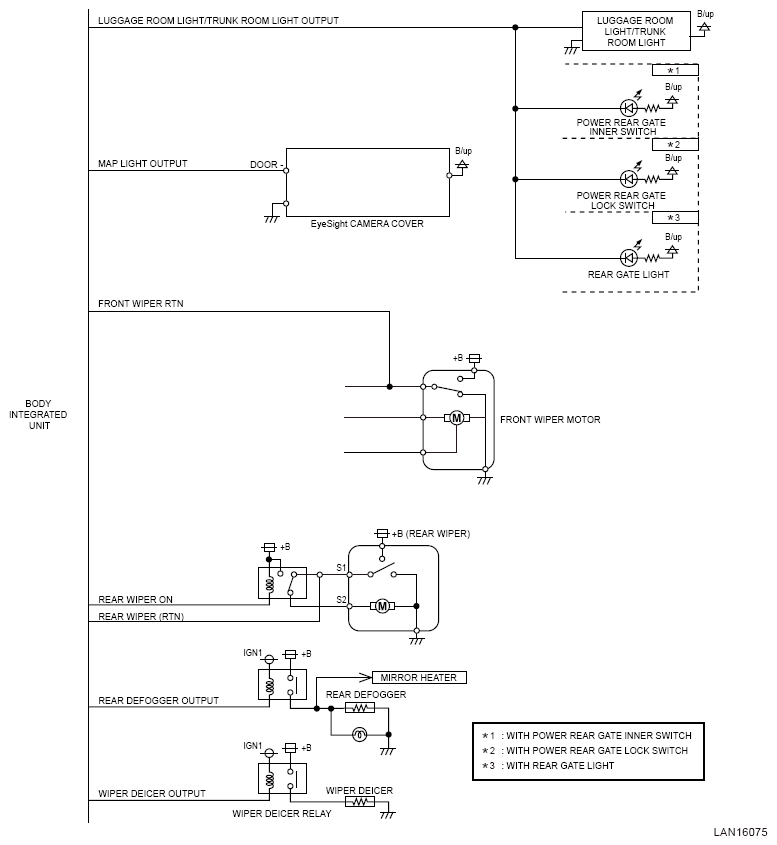

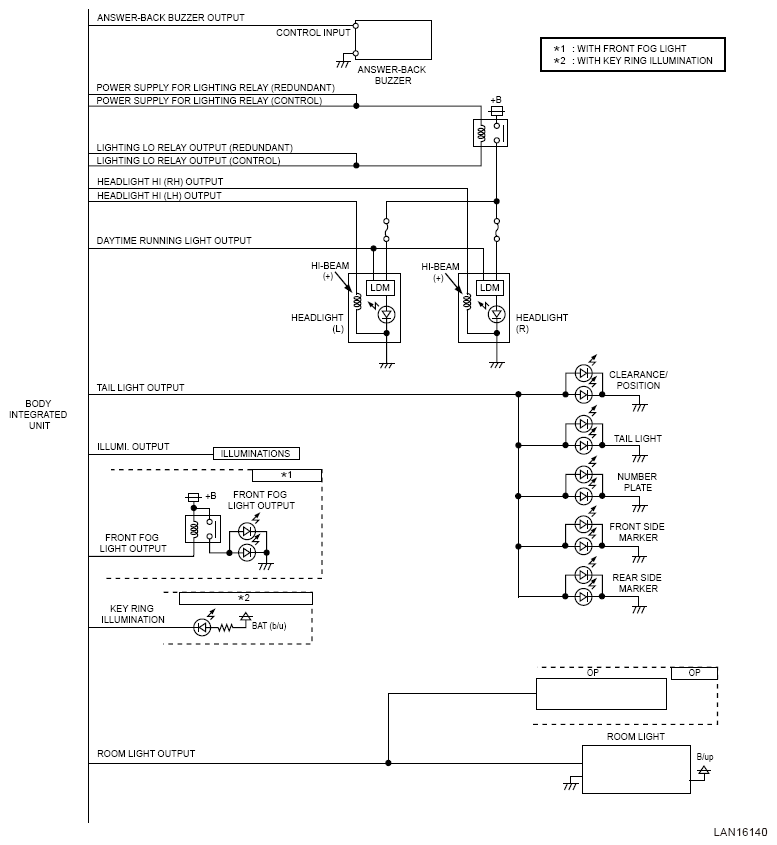

System Block Diagram

G16345820Courtesy of SUBARU OF AMERICA, INC.
G13595845Courtesy of SUBARU OF AMERICA, INC.
G16345822Courtesy of SUBARU OF AMERICA, INC.
G00674355Courtesy of SUBARU OF AMERICA, INC.
G13229040Courtesy of SUBARU OF AMERICA, INC.
G16345825Courtesy of SUBARU OF AMERICA, INC.
G16345826Courtesy of SUBARU OF AMERICA, INC.
G13229043Courtesy of SUBARU OF AMERICA, INC.
