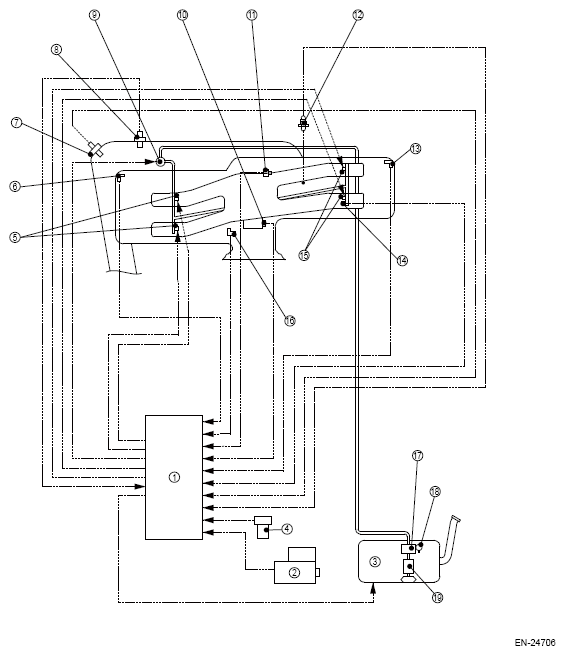

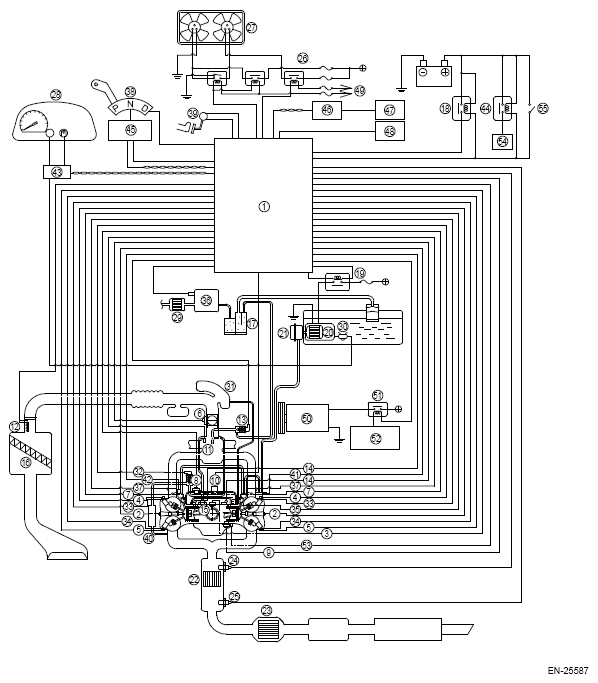

| (1) |
Engine control module (ECM) |
| (2) |
Ignition coil |
| (3) |
Crankshaft position sensor |
| (4) |
Intake camshaft position sensor |
| (5) |
Exhaust camshaft position sensor |
| (6) |
Electronic throttle control sensor |
| (7) |
Fuel injector |
| (8) |
Engine coolant temperature sensor (outlet) |
| (9) |
Engine coolant temperature sensor (inlet) |
| (10) |
Thermo control valve ASSY |
| (11) |
Manifold absolute pressure sensor |
| (12) |
Mass air flow and intake air temperature sensor |
| (13) |
Purge control solenoid valve |
| (14) |
Knock sensor |
| (15) |
PCV valve |
| (16) |
Air cleaner |
| (17) |
CANISTER |
| (18) |
Main relay 1 |
| (19) |
Fuel pump relay |
| (20) |
Fuel filter |
| (21) |
Fuel pump |
| (22) |
Front catalytic converter |
| (23) |
Rear catalytic converter |
| (24) |
Front oxygen (A/F) sensor |
| (25) |
Rear oxygen sensor |
| (26) |
Radiator fan relay |
| (27) |
Radiator fan |
| (28) |
Combination meter |
| (29) |
Drain filter |
| (30) |
Fuel level sensor |
| (31) |
Resonator chamber |
| (32) |
EGR control valve |
| (33) |
Intake oil control solenoid |
| (34) |
Exhaust oil control solenoid |
| (35) |
Engine oil temperature sensor |
| (36) |
Leak check valve ASSY |
| (37) |
Tumble generator valve actuator |
| (38) |
Parking/neutral position switch |
| (39) |
Accelerator pedal position sensor |
| (40) |
EGR cooler |
| (41) |
High-pressure fuel pump |
| (42) |
Fuel pressure sensor |
| (43) |
Body integrated unit |
| (44) |
Main relay 2 |
| (45) |
Transmission control module (TCM) |
| (46) |
VDC control module and hydraulic control unit (VDCCM & H/U) |
| (47) |
ABS wheel speed sensor |
| (48) |
Data link connector |
| (49) |
To IG 1 relay |
| (50) |
A/C compressor |
| (51) |
A/C relay |
| (52) |
A/C control panel |
| (53) |
Oil level switch |
| (54) |
Solenoid power supply |
| (55) |
Ignition switch |
