Torque Converter: Installation

Install a new O-ring to the input shaft.
NOTE: Apply CVTF to the O-rings.
Install the torque converter to the transmission body.
CAUTION:
- Do not damage the oil seal and O-ring.
- Do not scratch the inside of engaging parts.
NOTE:
- Apply CVTF to the oil seal lip.
- Engage the splines while gently rotating the torque converter by hand.

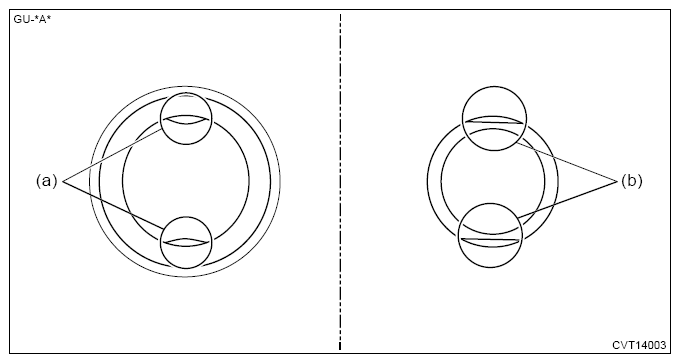

- Align the concave part (b) of the torque converter with the convex part (a) on the transmission side.
Courtesy of SUBARU OF AMERICA, INC.

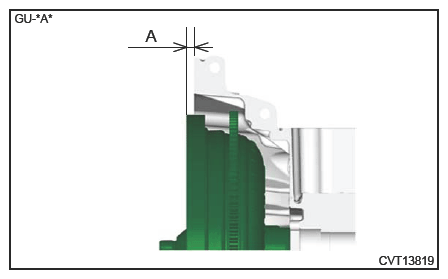

Measure the dimension "A" from converter case end surface to drive plate mounting surface.
NOTE: If the value is greater than or equal to the standard value, check that the torque converter is securely installed.

Specification:

6.8 mm (0.27 in) or less

Courtesy of SUBARU OF AMERICA, INC.
Set the ST.
Preparation tool:

ST: STOPPER SET (498277200)

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>INSTALLATION .
