Stabilizer Bushing

NOTE: Components: Ref. to REAR SUSPENSION>GENERAL DESCRIPTION>COMPONENT>REAR SUSPENSION .
  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

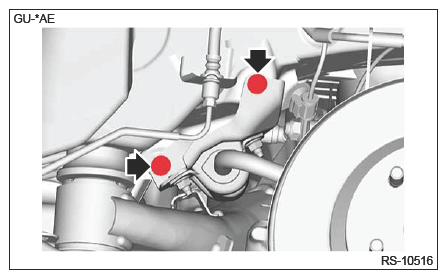

  2. Remove the bracket COMPL stabilizer.
    1. Remove the bolt.
    2. Remove the bracket COMPL stabilizer.
      G16766797Courtesy of SUBARU OF AMERICA, INC.

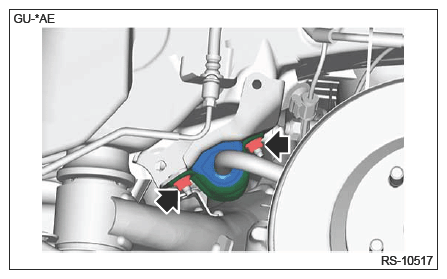

  3. Remove the rubber bushing stabilizer rear.
    1. Remove the nut.
    2. Remove the clamp stabilizer.
    3. Remove the rubber bushing stabilizer rear.
      G16766798Courtesy of SUBARU OF AMERICA, INC.
