Check Wireless Charging System Operation

Courtesy of SUBARU OF AMERICA, INC.

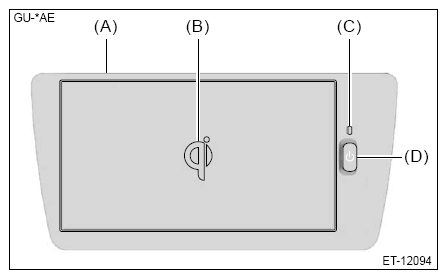

(A)	Charger tray
(B)	Charging area
(C)	Indicator
(D)	Wireless charging switch

1. Turn the ignition switch to ACC or ON.
2. Check that the indicator illuminates green when the wireless charger is turned on.
3. Check that the indicator illuminates orange and charging begins when a mobile device is placed on the charging area.
4. Check that the indicator illuminates green and orange alternately when a device supporting quick charging is placed in the charging area and the wireless charging switch is pressed three to four times.
5. Check that the indicator illuminates green when charging for a mobile device is completed.
6. Check that the indicator goes off when the wireless charger is turned off.
7. Check that the illumination intensity of the wireless charging switch changes in sync with the illumination control switch when the night illumination is turned to ON.
