Power Amplifier: Removal
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
.
NOTE:
- Components: Ref. to ENTERTAINMENT & MONITORING>GENERAL DESCRIPTION>COMPONENT>POWER AMPLIFIER .
- The power amplifier assembly is installed under the front seat RH. Remove the power amplifier assembly after sliding the front seat RH back and forth as necessary.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the power amplifier assembly.
- Remove the nut.
- Remove the harness clip.

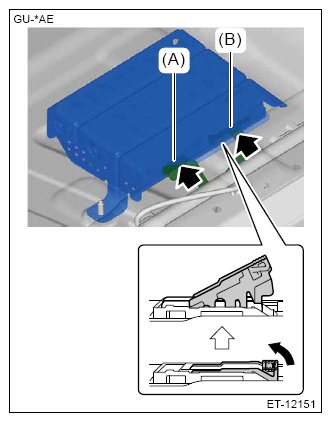

- Disconnect the connector (A).
- Move the lock lever in the arrow direction as shown in the figure and disconnect the connector (B).
- Remove the power amplifier assembly.
