Entertainment System: Camera: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the spoiler assembly roof side. Ref. to EXTERIOR/INTERIOR TRIM>ROOF SPOILER>REMOVAL .
  4. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .

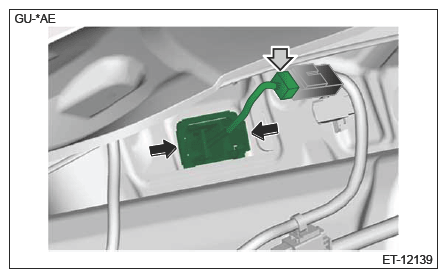

  5. Remove the rearview camera assembly.
    1. Disconnect the connector.
    2. Release the claw.
    3. Remove the rearview camera assembly.
    G16767694Courtesy of SUBARU OF AMERICA, INC.
