Center Exhaust Pipe: Installation

Install the hanger bracket to the transmission.

Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

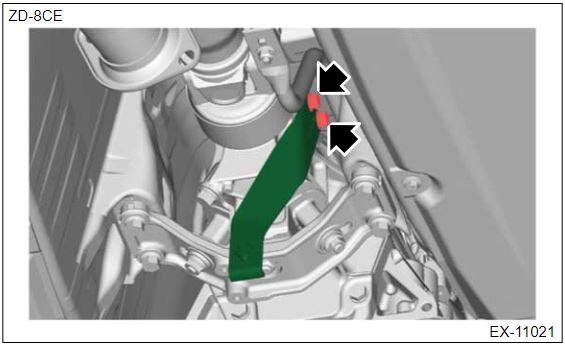

AT Model

Courtesy of SUBARU OF AMERICA, INC.

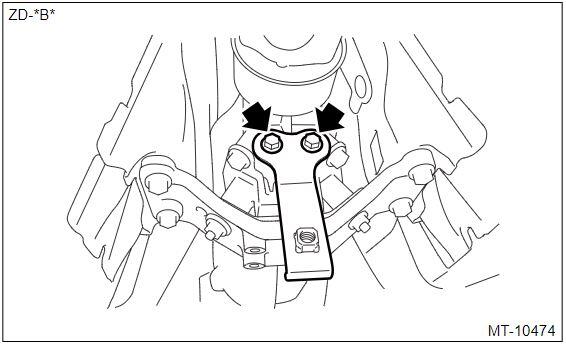

MT Model

Courtesy of SUBARU OF AMERICA, INC.

Set the center exhaust pipe using a new gasket.

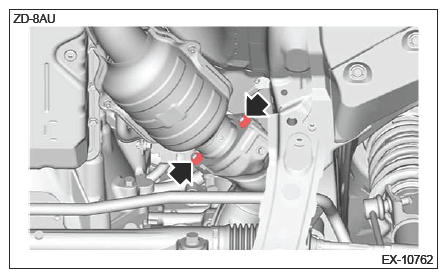

Temporarily tighten the nuts which connect the joint pipe and the center exhaust pipe.

Courtesy of SUBARU OF AMERICA, INC.

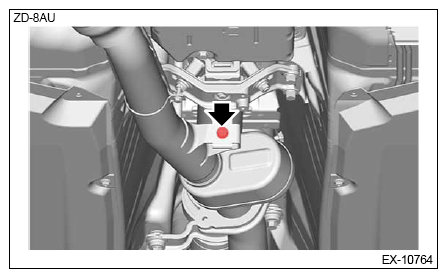

Install the bolt which holds the center exhaust pipe to the hanger bracket.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts which connect the joint pipe and the center exhaust pipe.
Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the center exhaust pipe and the rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the sub frame front LWR C COMPL RH. Ref. to FRONT SUSPENSION>SUB FRAME>INSTALLATION .
Install the under cover front and the under cover COMPL front T/M. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
