Operating Cylinder: Removal

CAUTION: Do not let clutch fluid come into contact with the painted surface of the vehicle.
Wash away with water immediately and wipe off if it is spilled by accident.

NOTE: The operating cylinder cannot be disassembled.

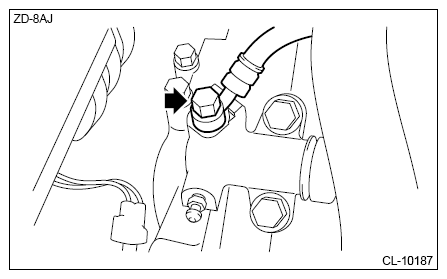

Disconnect the clutch hose from the operating cylinder.
NOTE: Prepare the container for collecting the clutch fluid.

Courtesy of SUBARU OF AMERICA, INC.

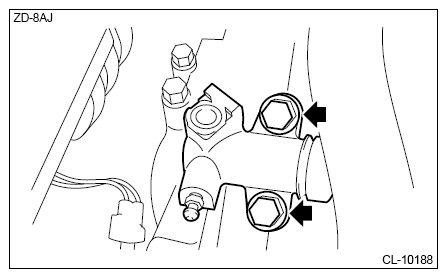

Remove the operating cylinder.

Courtesy of SUBARU OF AMERICA, INC.
