Clutch System: Flywheel: Installation

Press-fit a new pilot bearing using a press and an attachment of a suitable size, etc.

CAUTION:

Press-fit depth from the end surface of the flywheel:

0 - 0.4 mm (0 - 0.02 in)

Courtesy of SUBARU OF AMERICA, INC.

Temporarily install the flywheel and crankshaft position sensor plate.

CAUTION: Install with the stamped mark of the crankshaft position sensor plate facing the transmission side.

NOTE: Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Flywheel
(B)	Crankshaft position sensor plate

Secure the crank pulley with the ST1 and ST2.
NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA000)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)

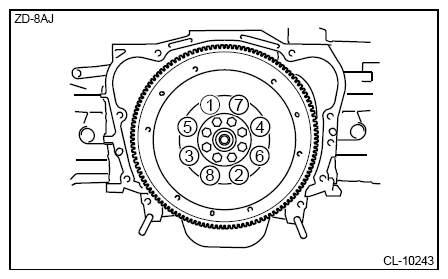

Fig 1: Flywheel Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and clutch cover. Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>INSTALLATION .
Install the transmission body. Ref. to MANUAL TRANSMISSION>TRANSMISSION ASSEMBLY>INSTALLATION .
