Universal Joint: Inspection

Check for wear, damage or any other faults.

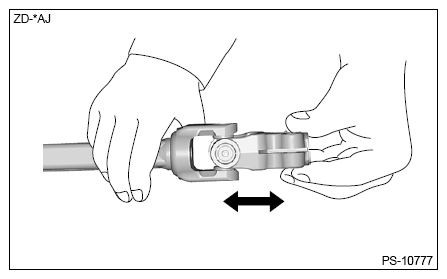

1. Check the universal joint assembly steering for excessive looseness.

   Service limit:

   Play of the universal joint assembly steering: 0 mm (0 in)

   Courtesy of SUBARU OF AMERICA, INC.

2. Measure the swing load of the universal joint assembly steering.
   1. Place the universal joint assembly steering between wooden blocks and fix it on a vise.

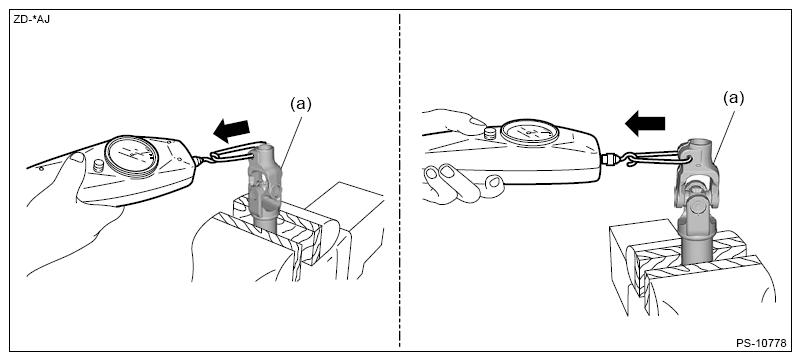

   2. With the yoke (a) of gearbox side facing up, measure the swing load in two directions.

      Service limit:

      Maximum load: 6.8 N (0.69 kgf, 1.52 lbf) or less

      Courtesy of SUBARU OF AMERICA, INC.

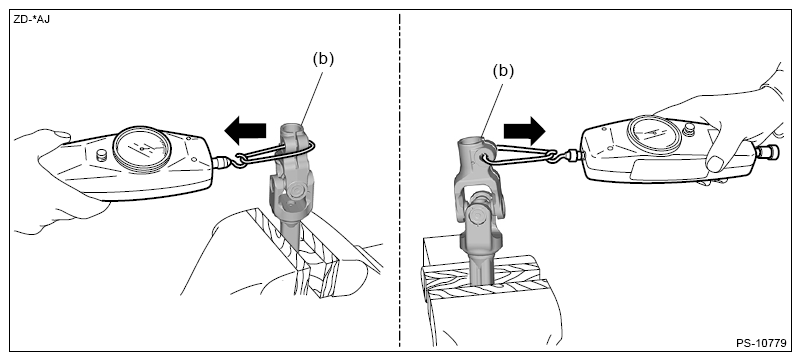

   3. With the yoke (b) of the column assembly steering side facing up, measure the swing load in two directions.

      Service limit:

      Maximum load: 5.9 N (0.60 kgf, 1.33 lbf) or less

      Courtesy of SUBARU OF AMERICA, INC.

   4. Replace as necessary, if it is found defective.
