Satellite Switch Assembly

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  3. Remove the satellite switch assembly.
    1. Disconnect the connector.

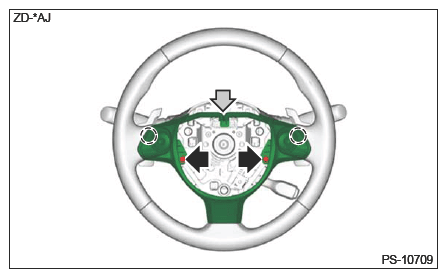

    2. Remove the screws and release the claws, and then remove the satellite switch assembly.
G16526461Courtesy of SUBARU OF AMERICA, INC.
