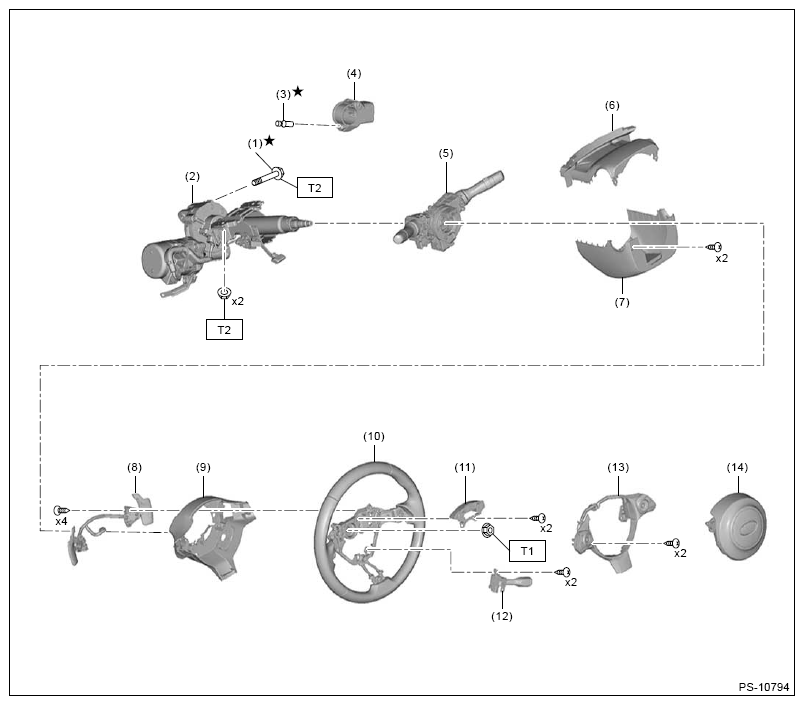

Steering Wheel And Column
| (1) | Flange bolt |
| (2) | Column ASSY steering |
| (3) | Set bolt |
| (4) | Steering lock control module |
| (5) | Switch ASSY combination (with steering roll connector) |
| (6) | Column cover UPR |
| (7) | Column cover LWR |
| (8) | Paddle shift switch ASSY (AT model) |
| (9) | Cover steering wheel LWR |
| (10) | Steering wheel |
| (11) | Dynamic damper |
| (12) | Switch ASSY cruise |
| (13) | Satellite switch ASSY |
| (14) | Driver's airbag module |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 39 (4.0, 28.8)
T2: 40 (4.1, 29.5)
