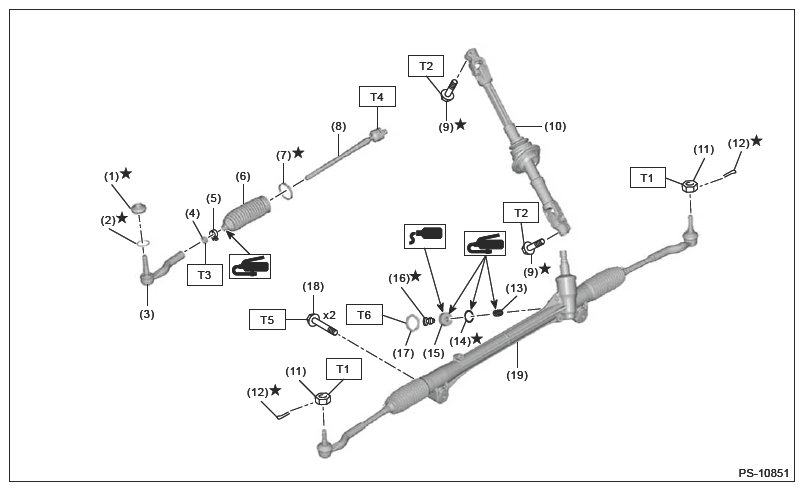

Steering Gearbox
| (1) | Dust boots |
| (2) | Clip boot tie-rod end |
| (3) | Tie-rod end RH |
| (4) | Locknut |
| (5) | Clip boot tie-rod |
| (6) | Boot steering gearbox |
| (7) | Band boot |
| (8) | Tie-rod |
| (9) | Flange bolt |
| (10) | Universal joint ASSY steering |
| (11) | Castle nut |
| (12) | Cotter pin |
| (13) | Spring gearbox |
| (14) | O-ring |
| (15) | Adjusting screw |
| (16) | Cap |
| (17) | Locknut |
| (18) | Gearbox bolt ASSY |
| (19) | Steering gearbox ASSY |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 27 (2.8, 19.9)
T2: 38 (3.9, 28.0)
T3: 85 (8.7, 62.7)
T4: 105 (10.7, 77.4)
T5: 120 (12.2, 88.5)
T6: Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING GEARBOX>ADJUSTMENT .
