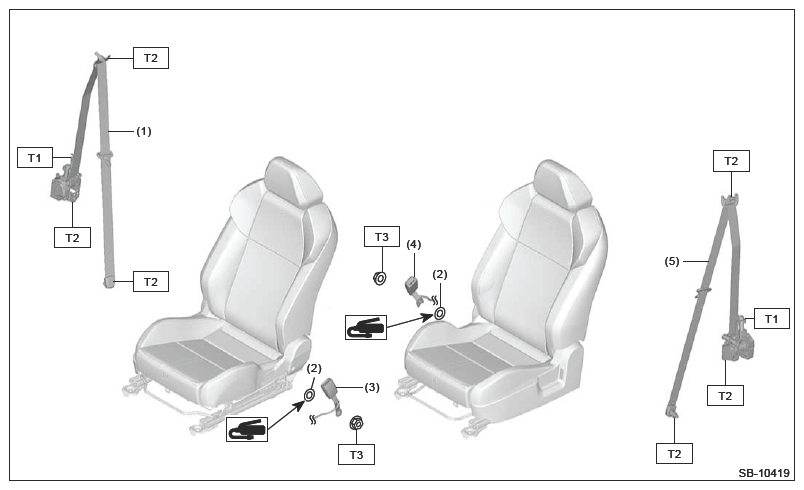

Front Seat Belt
| (1) | Belt ASSY front OUT RH | ||
| (2) | Spring wave washer | ||
| (3) | Belt ASSY front INN RH (1) | ||
| (4) | Belt ASSY front INN LH (1) | ||
| (5) | Belt ASSY front OUT LH | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 30 (3.1, 22.1)
T3: 38 (3.9, 28.0)
