Air Intake Duct: Installation

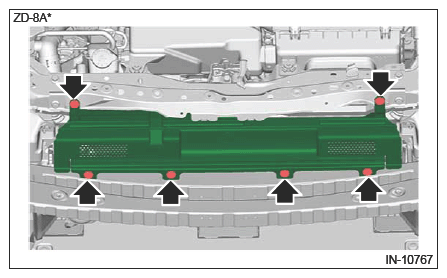

  1. Install the air intake plate.
    G16523653Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air intake duct.

    Tightening torque:

    6 N.m (0.6 kgf-m, 4.4 ft-lb)

    G16523652Courtesy of SUBARU OF AMERICA, INC.
  3. Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION>BUMPER FACE .
